MS27513E12B35P

Amphenol Aerospace Operations

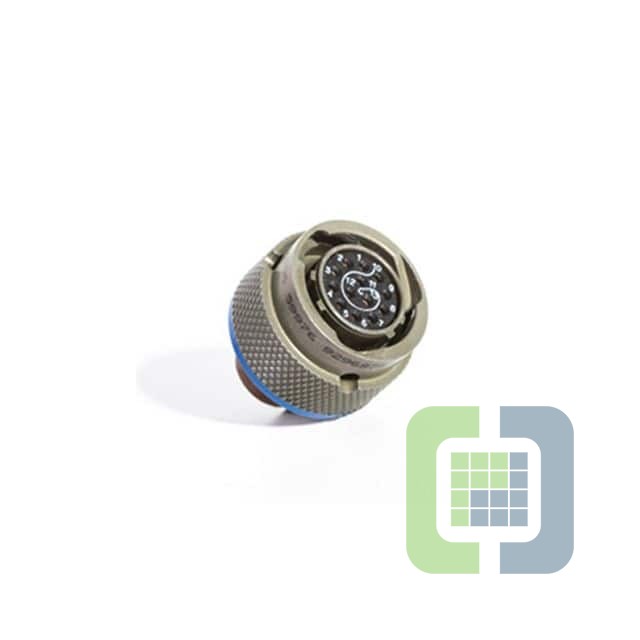

MS27513E12B35P Gallery image caption
In Stock: 124

Can ship immediately

Pricing:
  • 1$74.38
  • 5$67.74801
  • 10$57.18899
  • 25$51.9748

Quote It

Technical Details

  • Series:Military, MIL-DTL-38999 Series II, JT
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle, Male Pins
  • Number of Positions:22
  • Shell Size - Insert:12-35
  • Shell Size, MIL:-
  • Mounting Type:Panel Mount
  • Mounting Feature:Flange
  • Termination:Crimp
  • Fastening Type:Bayonet Lock
  • Orientation:N (Normal)



  • Shell Material:Aluminum
  • Shell Finish:Olive Drab Cadmium over Nickel
  • Contact Finish - Mating:Gold
  • Color:Olive Drab
  • Ingress Protection:Environment Resistant
  • Material Flammability Rating:-
  • Features:-
  • Shielding:Unshielded
  • Current Rating (Amps):-
  • Voltage Rating:-
  • Cable Opening:-
  • Operating Temperature:-65°C ~ 200°C
