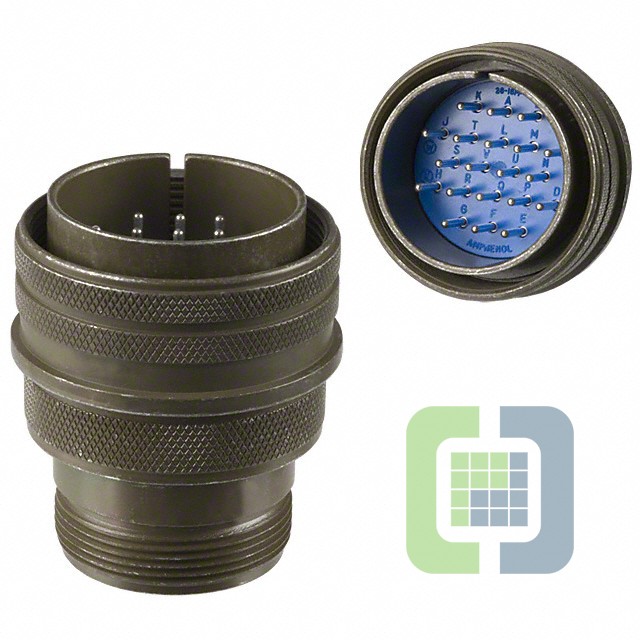

97-3106A-28-16P(946)
Amphenol Industrial
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG MALE 20P SOLDER CUP
- CategoryCircular Connectors
- Datasheet 97-3106A-28-16P(946) Datasheet
-
ECAD Model
- Share
In Stock: 135
Can ship immediately
Pricing:
- 1$100.7812
- 25$98.80199
Quote It
Technical Details
- Series:97
- Package:Bulk
- Part Status:Active
- Connector Type:Plug, Male Pins
- Number of Positions:20
- Shell Size - Insert:28-16
- Shell Size, MIL:-
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Termination:Solder Cup
- Fastening Type:Threaded
- Orientation:N (Normal)
- Shell Material:Aluminum Alloy
- Shell Finish:Black Zinc Alloy
- Contact Finish - Mating:Silver
- Color:Black
- Ingress Protection:-
- Material Flammability Rating:-
- Features:Backshell, Coupling Nut
- Shielding:Unshielded
- Current Rating (Amps):-
- Voltage Rating:-
- Cable Opening:-
- Operating Temperature:-55°C ~ 125°C
