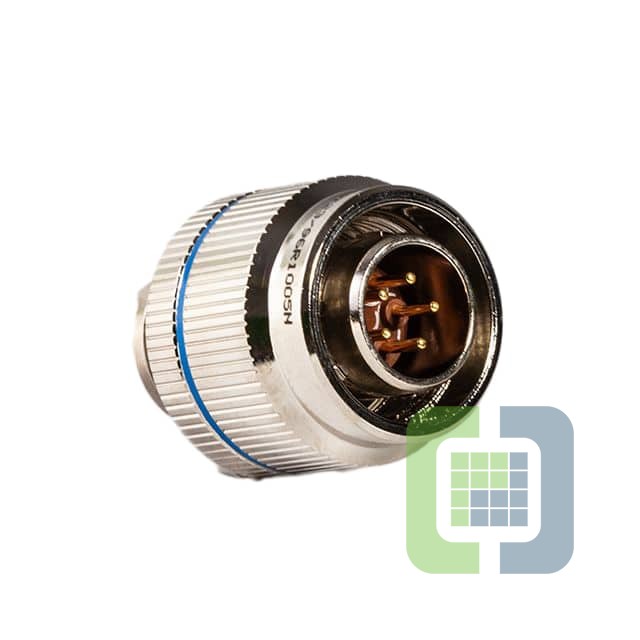

M83723/76R22126
Amphenol Aerospace Operations
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG MALE 12POS GOLD CRIMP
- CategoryCircular Connectors
- Datasheet M83723/76R22126 Datasheet
-
ECAD Model
- Share
In Stock: 117
Can ship immediately
Pricing:
- 1$109.79
- 10$103.32711
- 25$100.09792
- 50$93.63979
- 100$88.47344
Quote It
Technical Details
- Series:Military, MIL-DTL-83723 Series III
- Package:Bulk
- Part Status:Active
- Connector Type:Plug, Male Pins
- Number of Positions:12 (Power)
- Shell Size - Insert:22-12
- Shell Size, MIL:-
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Termination:Crimp
- Fastening Type:Bayonet Lock
- Orientation:6
- Shell Material:Aluminum
- Shell Finish:Electroless Nickel
- Contact Finish - Mating:Gold
- Color:Silver
- Ingress Protection:Environment Resistant
- Material Flammability Rating:-
- Features:Coupling Nut
- Shielding:Unshielded
- Current Rating (Amps):23A
- Voltage Rating:-
- Cable Opening:-
- Operating Temperature:-65°C ~ 200°C
