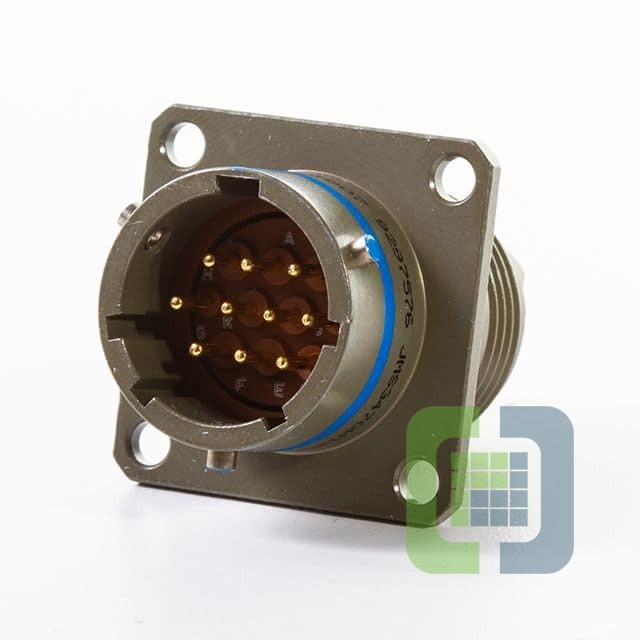

MS3472W20-16SZ
Amphenol Aerospace Operations
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT FMALE 16POS GOLD CRIMP
- CategoryCircular Connectors
- Datasheet MS3472W20-16SZ Datasheet
-
ECAD Model
- Share
In Stock: 195
Can ship immediately
Pricing:
- 1$114.96
- 50$93.54641
Quote It
Technical Details
- Series:Military, MIL-DTL-26482 Series II
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle, Female Sockets
- Number of Positions:16 (Power)
- Shell Size - Insert:20-16
- Shell Size, MIL:-
- Mounting Type:Panel Mount
- Mounting Feature:Flange
- Termination:Crimp
- Fastening Type:Bayonet Lock
- Orientation:Z
- Shell Material:Aluminum
- Shell Finish:Olive Drab Cadmium
- Contact Finish - Mating:Gold
- Color:Olive Drab
- Ingress Protection:Environment Resistant
- Material Flammability Rating:-
- Features:-
- Shielding:Unshielded
- Current Rating (Amps):-
- Voltage Rating:-
- Cable Opening:-
- Operating Temperature:-65°C ~ 200°C
