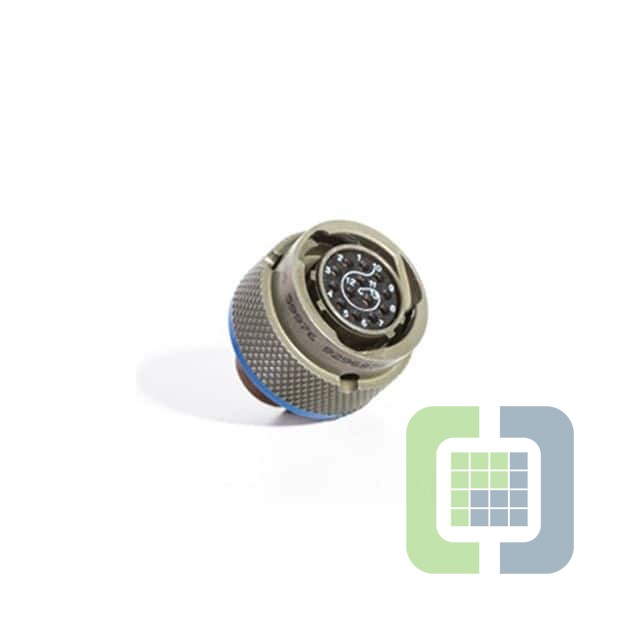

MS27497T24B19PA
Amphenol Aerospace Operations
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT MALE 19POS GOLD CRIMP
- CategoryCircular Connectors
- Datasheet MS27497T24B19PA Datasheet
-
ECAD Model
- Share
In Stock: 133
Can ship immediately
Pricing:
- 1$168.52
- 5$152.61996
- 10$151.56088
- 25$144.14143
- 50$140.9618
Quote It
Technical Details
- Series:Military, MIL-DTL-38999 Series II, JT
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle, Male Pins
- Number of Positions:19
- Shell Size - Insert:24-19
- Shell Size, MIL:-
- Mounting Type:Panel Mount
- Mounting Feature:Flange
- Termination:Crimp
- Fastening Type:Bayonet Lock
- Orientation:A
- Shell Material:Aluminum Alloy
- Shell Finish:Olive Drab Cadmium over Nickel
- Contact Finish - Mating:Gold
- Color:Olive Drab
- Ingress Protection:Environment Resistant
- Material Flammability Rating:-
- Features:-
- Shielding:Unshielded
- Current Rating (Amps):-
- Voltage Rating:-
- Cable Opening:-
- Operating Temperature:-65°C ~ 175°C
