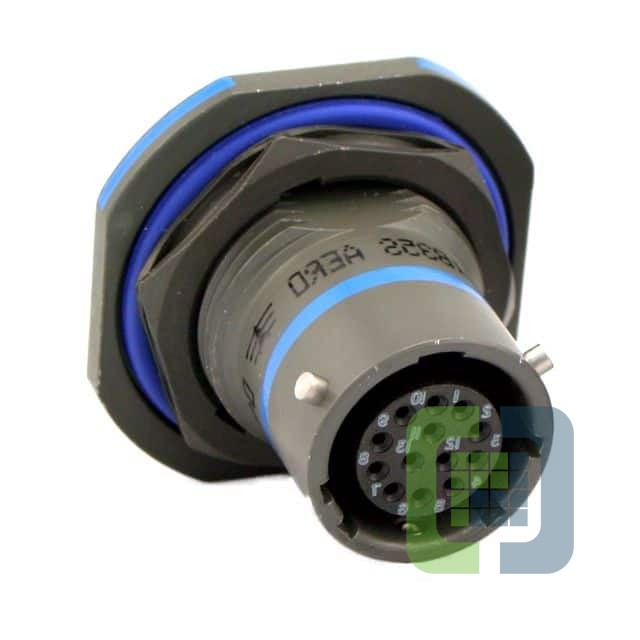

MS27505E25B4PA
Amphenol Aerospace Operations
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT MALE 56POS GOLD CRIMP
- CategoryCircular Connectors
- Datasheet MS27505E25B4PA Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
- 1$183.66
- 5$157.72401
- 10$146.533
- 25$138.964
Quote It
Technical Details
- Series:Military, MIL-DTL-38999 Series I, LJT
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle, Male Pins
- Number of Positions:56
- Shell Size - Insert:25-4
- Shell Size, MIL:-
- Mounting Type:Panel Mount
- Mounting Feature:Flange
- Termination:Crimp
- Fastening Type:Bayonet Lock
- Orientation:A
- Shell Material:Aluminum
- Shell Finish:Olive Drab Cadmium over Nickel
- Contact Finish - Mating:Gold
- Color:Olive Drab
- Ingress Protection:Environment Resistant
- Material Flammability Rating:-
- Features:-
- Shielding:Unshielded
- Current Rating (Amps):-
- Voltage Rating:-
- Cable Opening:-
- Operating Temperature:-65°C ~ 175°C
