8P1P01417BGL521
NorComp
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG MALE 14P GOLD SLDR CUP
- CategoryCircular Connectors
- Datasheet 8P1P01417BGL521 Datasheet
-
ECAD Model
- Share
In Stock: 191
Can ship immediately
Pricing:
- 1$20.69
- 18$19.20778
- 36$17.2375
- 54$16.745
- 108$14.775
- 252$13.79
- 504$13.4945
Quote It
Technical Details
- Series:QUIK-LOQ™ 8P1P
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Male Pins
- Number of Positions:14
- Shell Size - Insert:-
- Shell Size, MIL:-
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Termination:Solder Cup
- Fastening Type:Push-Pull
- Orientation:Keyed
- Shell Material:Polyacrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC)
- Shell Finish:-
- Contact Finish - Mating:Gold
- Color:Gray
- Ingress Protection:IP50 - Dust Protected
- Material Flammability Rating:-
- Features:Backshell, Strain Relief
- Shielding:Unshielded
- Current Rating (Amps):3A
- Voltage Rating:333V
- Cable Opening:0.157" ~ 0.197" (4.00mm ~ 5.00mm)
- Operating Temperature:-20°C ~ 120°C
Related Products

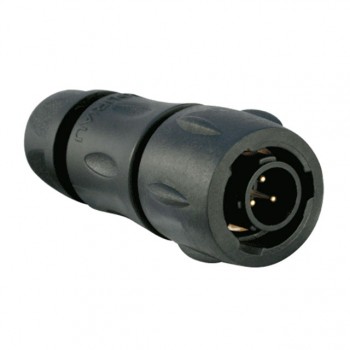

CONN PLUG MALE 3P GOLD SLDR CUP
