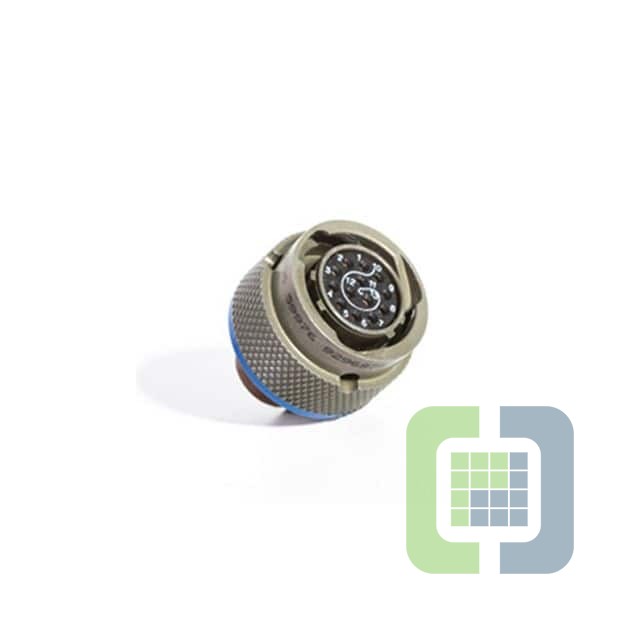

MS27472T24B4P-LC
PEI-Genesis
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionAE2 56C 48#20, 8#16 PIN RECP
- CategoryCircular Connectors - Housings
- Datasheet MS27472T24B4P-LC Datasheet
-
ECAD Model
- Share
In Stock: 221
Can ship immediately
Pricing:
- 1$49.69
- 5$45.00201
- 10$44.68944
- 25$42.50188
- 50$41.56428
Quote It
Technical Details
- Series:Military, MIL-DTL-38999 Series II, JT
- Package:Box
- Part Status:Active
- Connector Type:Receptacle Housing
- Type:For Male Pins
- Number of Positions:56
- Shell Size - Insert:24-4
- Shell Size, MIL:-
- Contact Type:Crimp
- Contact Size:16 (8), 20 (48)
- Mounting Type:Panel Mount
- Mounting Feature:Flange
- Fastening Type:Bayonet Lock
- Orientation:N (Normal)
- Shell Material:Aluminum Alloy
- Shell Finish:Cadmium over Nickel
- Housing Color:Olive Drab
- Ingress Protection:Environment Resistant
- Material Flammability Rating:-
- Features:-
- Shielding:Unshielded
