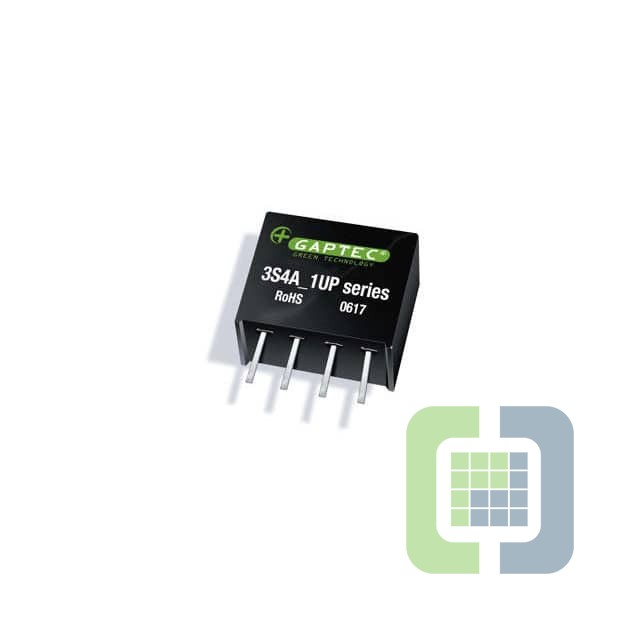

3S4A_0524S1UP

Technical Details

• Series:3S4A_1UP (3W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):4.5V
• Voltage - Input (Max):5.5V
• Voltage - Output 1:24V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):125mA
• Power (Watts):3 W

• Voltage - Isolation:1 kV
• Applications:ITE (Commercial)
• Features:-
• Operating Temperature:-40°C ~ 85°C
• Efficiency:79%
• Mounting Type:Through Hole
• Package / Case:4-SIP Module
• Size / Dimension:0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:CE
• Standard Number:-
