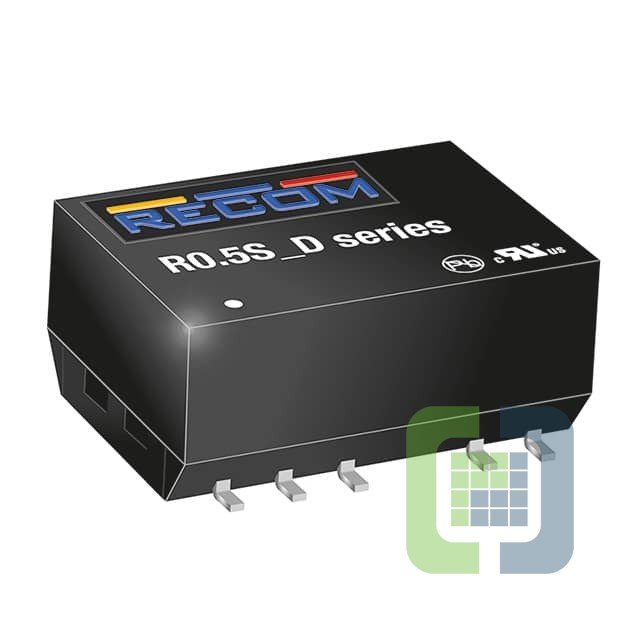

R0.5S-1215/H

Technical Details

• Series:ECONOLINE R0.5S (0.5W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):10.8V
• Voltage - Input (Max):13.2V
• Voltage - Output 1:15V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):33mA
• Power (Watts):500 mW

• Voltage - Isolation:3 kV
• Applications:ITE (Commercial)
• Features:SCP
• Operating Temperature:-40°C ~ 100°C
• Efficiency:75%
• Mounting Type:Surface Mount
• Package / Case:8-SMD Module, 5 Leads
• Size / Dimension:0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
