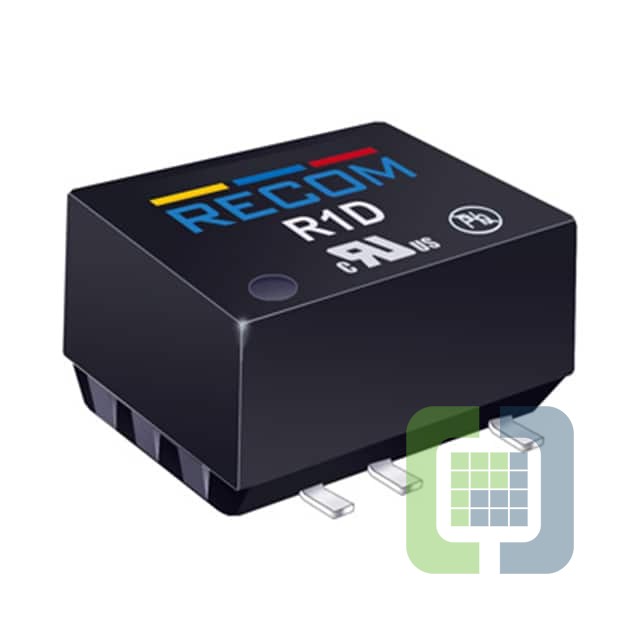

R1D-2424

Technical Details

• Series:ECONOLINE R1D (1W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):21.6V
• Voltage - Input (Max):26.4V
• Voltage - Output 1:24V
• Voltage - Output 2:-24V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):21mA, 21mA
• Power (Watts):1 W

• Voltage - Isolation:1 kV
• Applications:ITE (Commercial)
• Features:SCP
• Operating Temperature:-40°C ~ 100°C
• Efficiency:84%
• Mounting Type:Surface Mount
• Package / Case:10-SMD Module, 6 Leads
• Size / Dimension:0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
