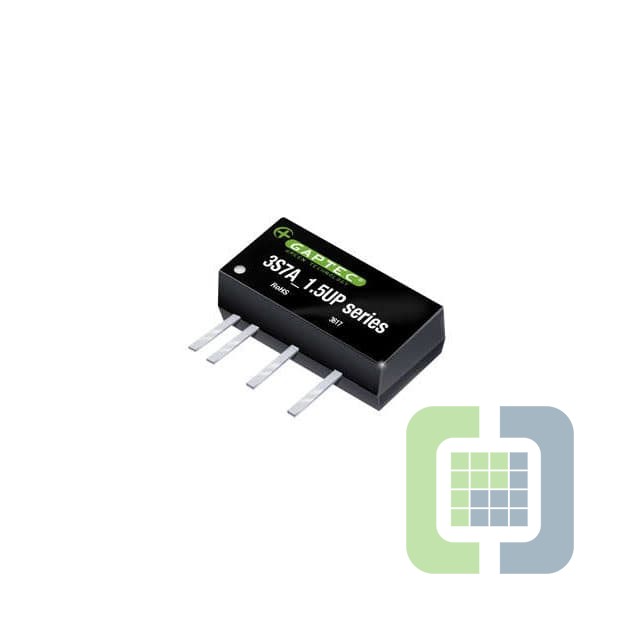

3S7A_1212S1.5UP

Technical Details

• Series:3S7A_1.5UP (3W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):10.8V
• Voltage - Input (Max):13.2V
• Voltage - Output 1:12V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):250mA
• Power (Watts):3 W

• Voltage - Isolation:1.5 kV
• Applications:ITE (Commercial)
• Features:-
• Operating Temperature:-40°C ~ 105°C (With Derating)
• Efficiency:88%
• Mounting Type:Through Hole
• Package / Case:7-SIP Module, 4 Leads
• Size / Dimension:0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:CE
• Standard Number:-
