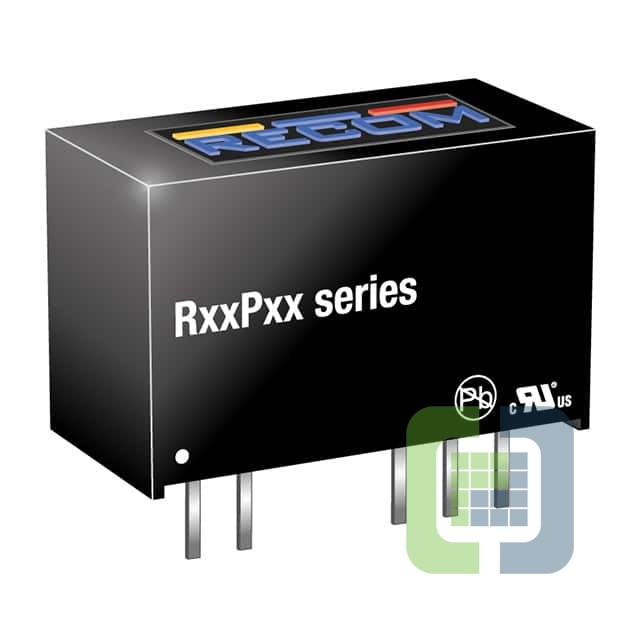

R05P09S/X2

Technical Details

• Series:ECONOLINE RxxPxx (1W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):4.5V
• Voltage - Input (Max):5.5V
• Voltage - Output 1:9V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):111mA
• Power (Watts):1 W

• Voltage - Isolation:6.4 kV
• Applications:ITE (Commercial), Medical
• Features:SCP
• Operating Temperature:-40°C ~ 90°C
• Efficiency:75%
• Mounting Type:Through Hole
• Package / Case:7-SIP Module, 4 Leads
• Size / Dimension:0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
