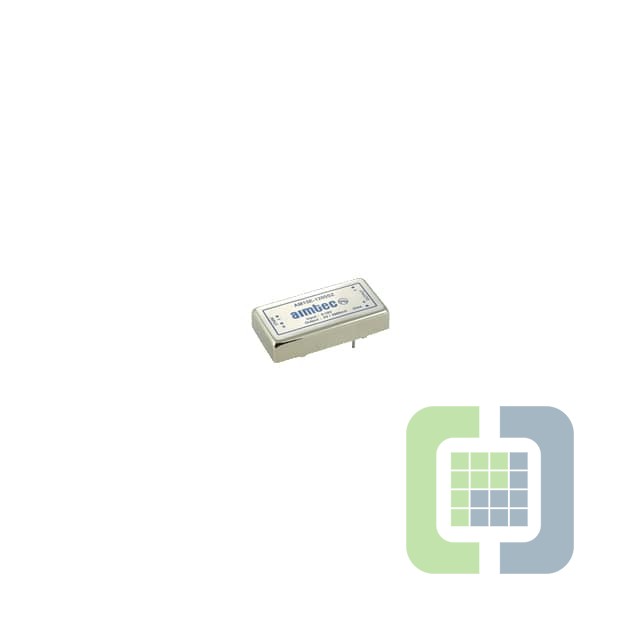

AM15E-4809SZ

Technical Details

• Series:AM15E-Z (15W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):36V
• Voltage - Input (Max):72V
• Voltage - Output 1:9V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):1.66A
• Power (Watts):15 W

• Voltage - Isolation:1.5 kV
• Applications:ITE (Commercial)
• Features:-
• Operating Temperature:-40°C ~ 70°C (With Derating)
• Efficiency:85%
• Mounting Type:Through Hole
• Package / Case:5-DIP Module, 4 Leads
• Size / Dimension:2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:CE, cULus, cURus
• Standard Number:-
