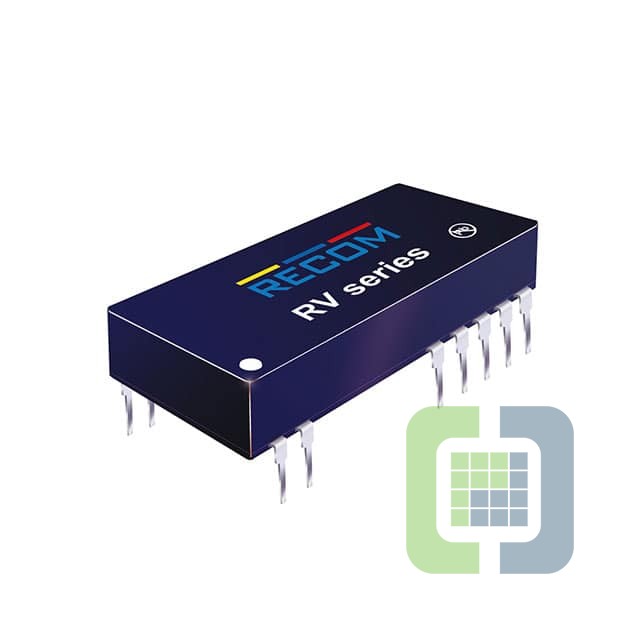

RV-1215S/R8

Technical Details

• Series:ECONOLINE RV/R (2W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):10.8V
• Voltage - Input (Max):13.2V
• Voltage - Output 1:15V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):132mA
• Power (Watts):2 W

• Voltage - Isolation:8 kV
• Applications:ITE (Commercial), Medical
• Features:-
• Operating Temperature:-40°C ~ 85°C
• Efficiency:88%
• Mounting Type:Through Hole
• Package / Case:24-DIP Module, 14 Leads
• Size / Dimension:1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
