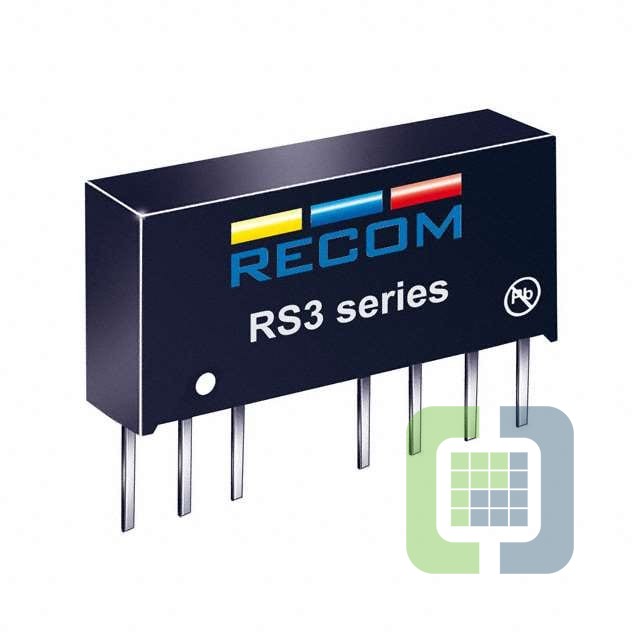

RS3-4815SZ/H3

Technical Details

• Series:ECONOLINE RS3 (3W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):20V
• Voltage - Input (Max):60V
• Voltage - Output 1:15V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):200mA
• Power (Watts):3 W

• Voltage - Isolation:3 kV
• Applications:ITE (Commercial), Medical
• Features:Remote On/Off, SCP
• Operating Temperature:-40°C ~ 71°C
• Efficiency:80%
• Mounting Type:Through Hole
• Package / Case:8-SIP Module, 7 Leads
• Size / Dimension:0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
• Supplier Device Package:-
• Control Features:Enable, Active Low
• Approval Agency:-
• Standard Number:-
