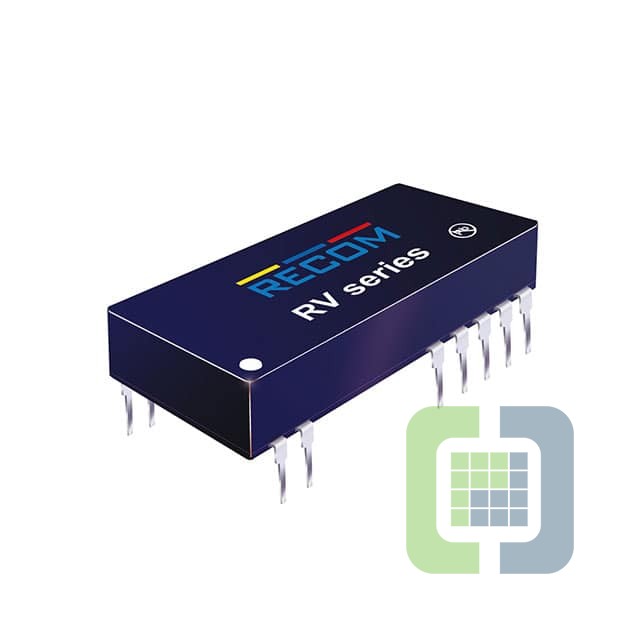

RV-2412D/R6.4
RECOM Power
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDC DC CONVERTER +/-12V 2W
- CategoryDC DC Converters
- Datasheet RV-2412D/R6.4 Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$23.72267
- 15$23.72267
Quote It
Technical Details
- Series:ECONOLINE RV/R (2W)
- Package:Tube
- Part Status:Active
- Type:Isolated Module
- Number of Outputs:2
- Voltage - Input (Min):21.6V
- Voltage - Input (Max):26.4V
- Voltage - Output 1:12V
- Voltage - Output 2:-12V
- Voltage - Output 3:-
- Voltage - Output 4:-
- Current - Output (Max):85mA, 85mA
- Power (Watts):2 W
- Voltage - Isolation:6.4 kV
- Applications:ITE (Commercial), Medical
- Features:-
- Operating Temperature:-40°C ~ 85°C
- Efficiency:86%
- Mounting Type:Through Hole
- Package / Case:24-DIP Module, 14 Leads
- Size / Dimension:1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
- Supplier Device Package:-
- Control Features:-
- Approval Agency:-
- Standard Number:-
