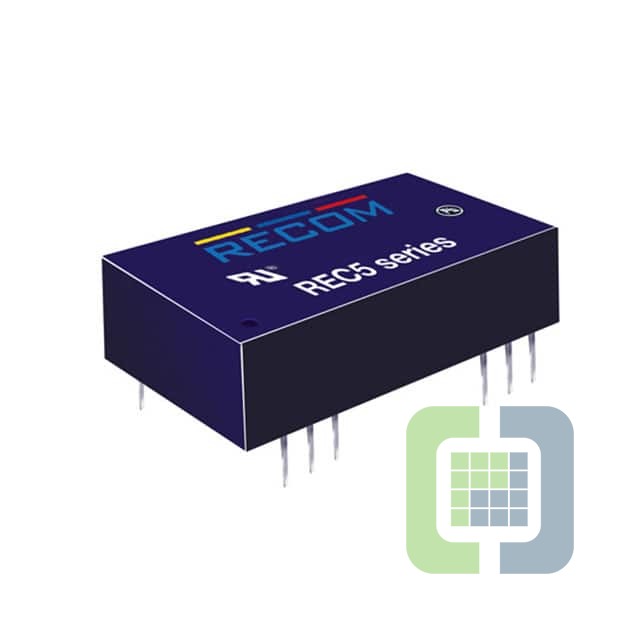

REC5-2409SRWZ/H6/A/SMD/CTRL-R

Technical Details

• Series:ECONOLINE REC5 (5W)
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):9V
• Voltage - Input (Max):36V
• Voltage - Output 1:9V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):556mA
• Power (Watts):5 W

• Voltage - Isolation:6 kV
• Applications:ITE (Commercial), Medical
• Features:Remote On/Off, SCP
• Operating Temperature:-40°C ~ 75°C
• Efficiency:83%
• Mounting Type:Surface Mount
• Package / Case:24-SMD Module, 18 Leads
• Size / Dimension:1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm)
• Supplier Device Package:-
• Control Features:Enable, Active Low
• Approval Agency:-
• Standard Number:-
