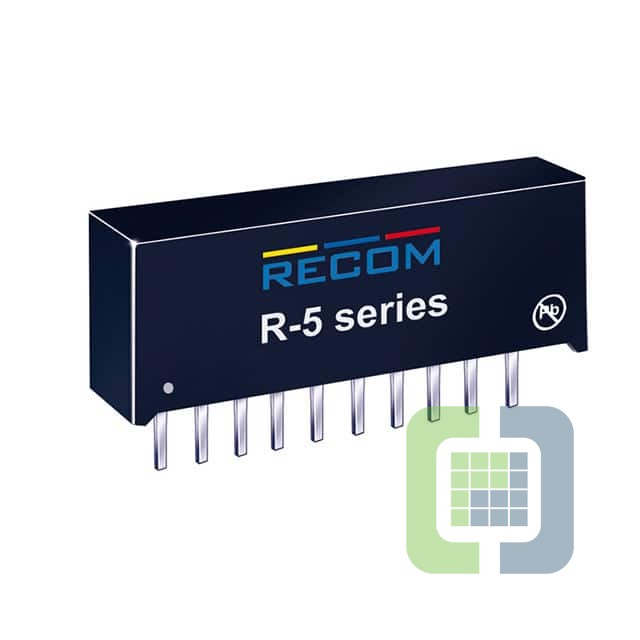

R-541.8DA

Technical Details

• Series:INNOLINE R-5xxxA
• Package:Tube
• Part Status:Active
• Type:Non-Isolated PoL Module
• Number of Outputs:1
• Voltage - Input (Min):4.5V
• Voltage - Input (Max):18V
• Voltage - Output 1:1.8V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):4A
• Power (Watts):7.2 W

• Voltage - Isolation:-
• Applications:ITE (Commercial)
• Features:Remote On/Off, OCP, SCP
• Operating Temperature:-40°C ~ 85°C
• Efficiency:87%
• Mounting Type:Through Hole, Right Angle
• Package / Case:12-SIP Module
• Size / Dimension:1.27" L x 0.59" W x 0.36" H (32.2mm x 15.0mm x 9.1mm)
• Supplier Device Package:-
• Control Features:Enable, Active High
• Approval Agency:-
• Standard Number:-
