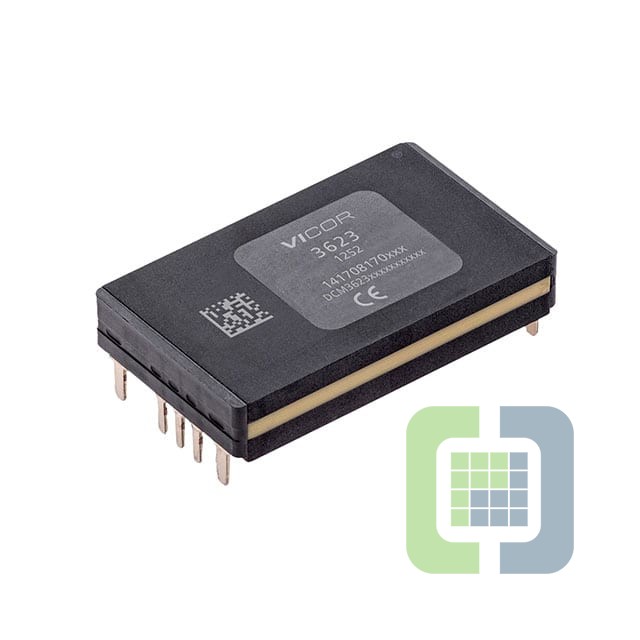

DCM3623T75X2680M00

Technical Details

• Series:VI Chip® DCM®
• Package:Bulk
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):9V
• Voltage - Input (Max):75V
• Voltage - Output 1:24V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):3.4A
• Power (Watts):82 W

• Voltage - Isolation:2.25 kV
• Applications:ITE (Commercial)
• Features:OCP, OTP, OVP, SCP, UVLO
• Operating Temperature:-55°C ~ 125°C
• Efficiency:90.9%
• Mounting Type:Through Hole
• Package / Case:9-DIP Module
• Size / Dimension:1.52" L x 0.90" W x 0.28" H (38.7mm x 22.8mm x 7.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
