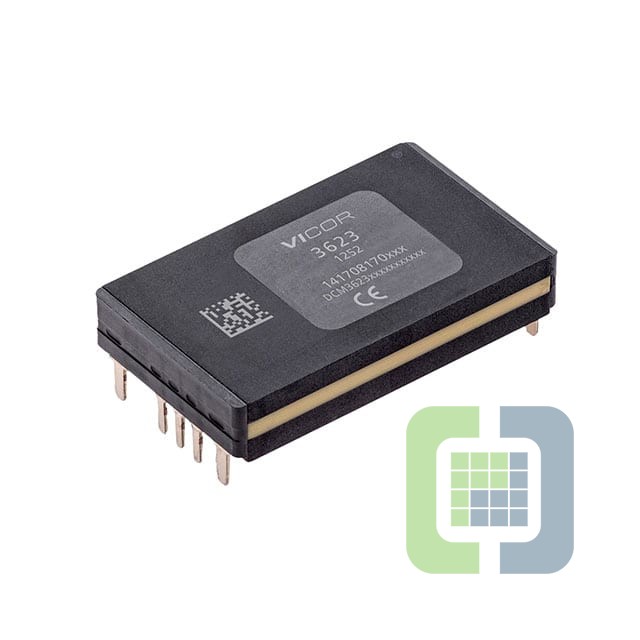

DCM3623T50T0480M00
Vicor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDC DC CONVERTER 3.3V 80W
- CategoryDC DC Converters
- Datasheet DCM3623T50T0480M00 Datasheet
-
ECAD Model
- Share
In Stock: 109
Can ship immediately
Pricing:
- 1$380.75
- 10$368.46569
Quote It
Technical Details
- Series:VI Chip® DCM® (80W)
- Package:Tray
- Part Status:Active
- Type:Isolated Module
- Number of Outputs:1
- Voltage - Input (Min):9V
- Voltage - Input (Max):50V
- Voltage - Output 1:3.3V
- Voltage - Output 2:-
- Voltage - Output 3:-
- Voltage - Output 4:-
- Current - Output (Max):24.3A
- Power (Watts):80 W
- Voltage - Isolation:2.25 kV
- Applications:ITE (Commercial)
- Features:Remote On/Off, OCP, OTP, OVP, SCP, UVLO
- Operating Temperature:-55°C ~ 125°C (With Derating)
- Efficiency:87.7%
- Mounting Type:Through Hole
- Package / Case:9-DIP Module
- Size / Dimension:1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm)
- Supplier Device Package:-
- Control Features:-
- Approval Agency:-
- Standard Number:-
