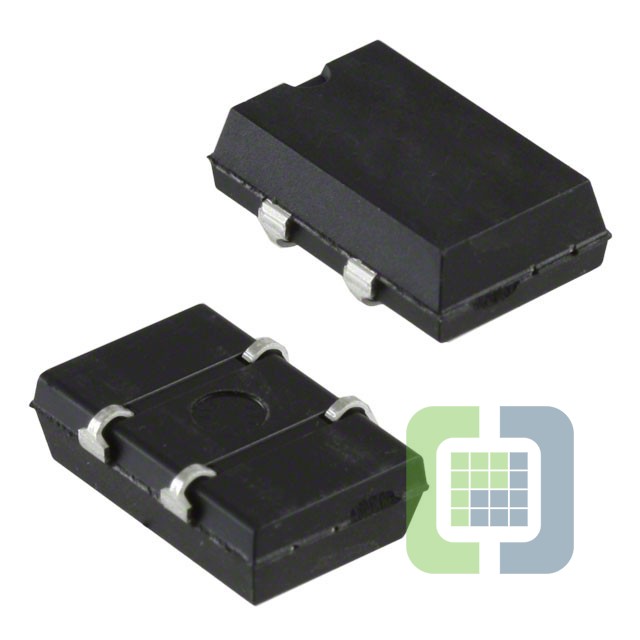

SG-615P 25.0000MB3:ROHS

Technical Details

• Series:SG-615
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Base Resonator:Crystal
• Type:XO (Standard)
• Frequency:25 MHz
• Function:Enable/Disable
• Output:CMOS, TTL
• Voltage - Supply:5V
• Frequency Stability:±50ppm

• Absolute Pull Range (APR):-
• Operating Temperature:-20°C ~ 70°C
• Spread Spectrum Bandwidth:-
• Current - Supply (Max):23mA
• Ratings:-
• Mounting Type:Surface Mount
• Package / Case:4-SOJ, 5.08mm pitch
• Size / Dimension:0.551" L x 0.341" W (14.00mm x 8.65mm)
• Height - Seated (Max):0.185" (4.70mm)
