DSC1101AE5-007.6800
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMEMS OSC XO 7.6800MHZ CMOS SMD
- CategoryOscillators
- Datasheet DSC1101AE5-007.6800 Datasheet
-
ECAD Model
- Share
In Stock: 162
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:DSC1101
- Package:Tube
- Part Status:Active
- Base Resonator:MEMS
- Type:XO (Standard)
- Frequency:7.68 MHz
- Function:Standby (Power Down)
- Output:CMOS
- Voltage - Supply:2.25V ~ 3.6V
- Frequency Stability:±10ppm
- Absolute Pull Range (APR):-
- Operating Temperature:-20°C ~ 70°C
- Spread Spectrum Bandwidth:-
- Current - Supply (Max):35mA
- Ratings:-
- Mounting Type:Surface Mount

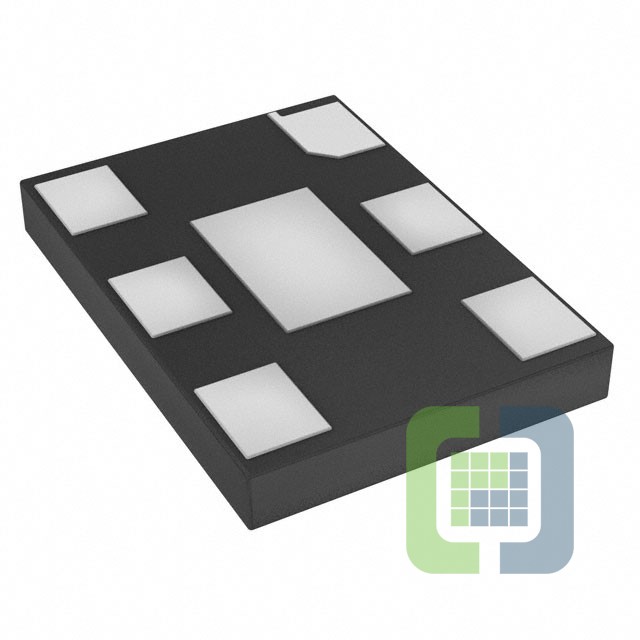

- Package / Case:6-SMD, No Lead Exposed Pad
- Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max):0.035" (0.90mm)
