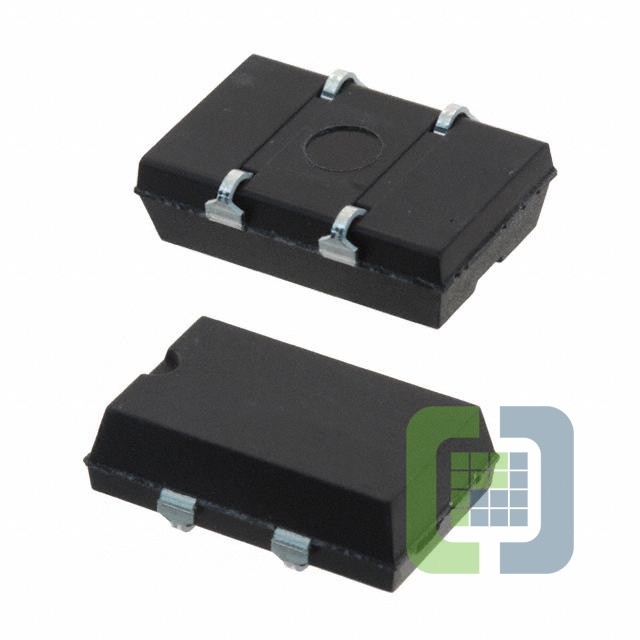

SG-615PCG 22.5792MB: ROHS
Epson
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionXTAL OSC XO 22.5792MHZ CMOS TTL
- CategoryOscillators
- Datasheet SG-615PCG 22.5792MB: ROHS Datasheet
-
ECAD Model
- Share
In Stock: 114
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:SG-615PCG
- Package:Bulk
- Part Status:Obsolete
- Base Resonator:Crystal
- Type:XO (Standard)
- Frequency:22.5792 MHz
- Function:Enable/Disable
- Output:CMOS, TTL
- Voltage - Supply:3.3V
- Frequency Stability:±50ppm
- Absolute Pull Range (APR):-
- Operating Temperature:-20°C ~ 70°C
- Spread Spectrum Bandwidth:-
- Current - Supply (Max):28mA
- Ratings:-
- Mounting Type:Surface Mount
- Package / Case:4-SOJ, 5.08mm pitch
- Size / Dimension:0.551" L x 0.341" W (14.00mm x 8.65mm)
- Height - Seated (Max):0.185" (4.70mm)
