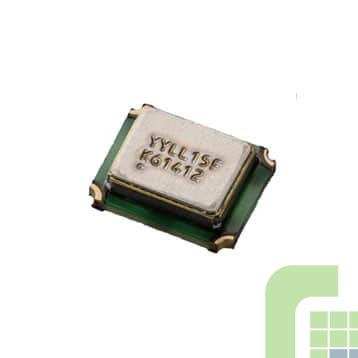

KT2520K26000ZAW18TKS

Technical Details

• Series:KT2520
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Base Resonator:Crystal
• Type:TCXO
• Frequency:37.4 MHz
• Function:-
• Output:Clipped Sine Wave
• Voltage - Supply:1.8V
• Frequency Stability:-

• Absolute Pull Range (APR):-
• Operating Temperature:-0°C ~ 60°C
• Spread Spectrum Bandwidth:-
• Current - Supply (Max):2mA
• Ratings:AEC-Q200
• Mounting Type:Surface Mount
• Package / Case:6-SMD, No Lead
• Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
• Height - Seated (Max):0.031" (0.80mm)
