In Stock: 1,322

Can ship immediately

Pricing:
  • 1$1.53
  • 10$1.39674
  • 100$1.21255
  • 500$1.02802
  • 1,000$0.89623
  • 5,000$0.80659
  • 10,000$0.79079

Quote It

Technical Details

  • Series:Universal MATE-N-LOK
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.250" (6.35mm)
  • Number of Positions:12
  • Number of Rows:3
  • Row Spacing - Mating:0.250" (6.35mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.155" (3.94mm)
  • Overall Contact Length:-
  • Insulation Height:0.550" (13.97mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-2
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0559171630

CONN HEADER VERT 16POS 2MM

0559171630 Datasheet
  • 1: $1.54000
  • 10: $1.34991
  • 100: $1.16486

XG4C-1631

CONN HEADER VERT 16POS 2.54MM

XG4C-1631 Datasheet
  • 1: $1.54000
  • 10: $1.39610
  • 110: $1.19710

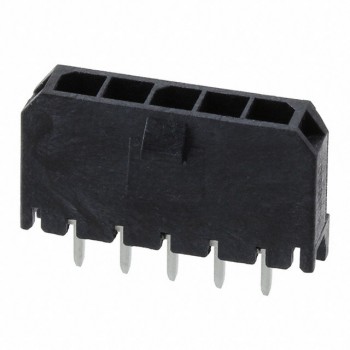

0436500528

CONN HEADER VERT 5POS 3MM

0436500528 Datasheet
  • 1: $1.54000
  • 10: $1.40018
  • 100: $1.20039

1761681-3

CONN HEADER VERT 10POS 2.54MM

1761681-3 Datasheet
  • 1: $1.54000
  • 10: $1.39857
  • 100: $1.19900

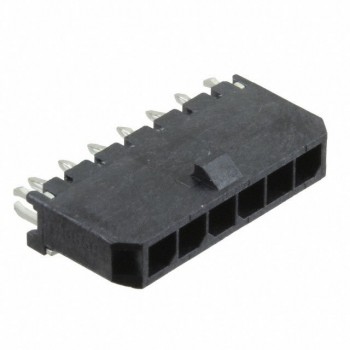

0436500618

CONN HEADER VERT 6POS 3MM

0436500618 Datasheet
  • 1: $1.54000
  • 10: $1.39305
  • 100: $1.19405

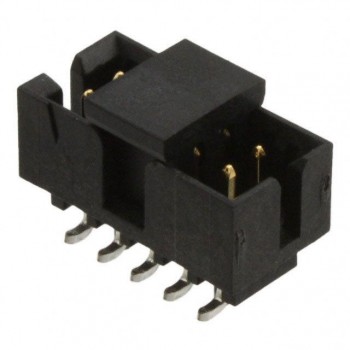

0878325422

CONN HEADER SMD 10POS 2MM

0878325422 Datasheet
  • 1: $2.17000
  • 500: $1.40578
  • 1000: $1.20495

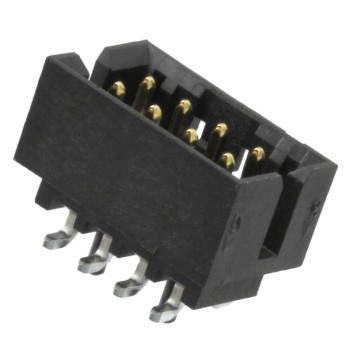

0878320810
