0430451023
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 10POS 3MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0430451023 Datasheet
-
ECAD Model
- Share
In Stock: 2,289
Can ship immediately
Pricing:
- 1$4.18
- 10$4.00937
- 100$3.34097
- 500$2.83984
- 1,224$2.42221
Quote It
Technical Details
- Series:Micro-Fit 3.0 43045
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.118" (3.00mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.118" (3.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.125" (3.18mm)
- Overall Contact Length:-
- Insulation Height:0.290" (7.37mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
- Features:Board Lock
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):8A
- Voltage Rating:600V
Related Products

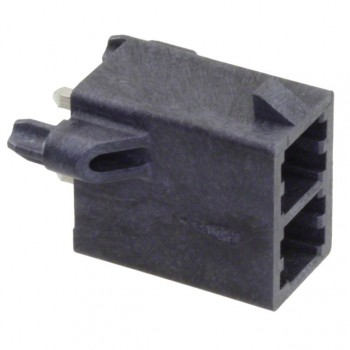

CONN HEADER R/A 2POS 5.84MM
