In Stock: 1,039

Can ship immediately

Pricing:
  • 1$4.73
  • 26$4.20423
  • 104$3.85361
  • 520$3.32812
  • 1,014$2.8902

Quote It

Technical Details

  • Series:AMP-Latch
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks, Long
  • Contact Length - Mating:0.237" (6.02mm)



  • Contact Length - Post:0.102" (2.60mm)
  • Overall Contact Length:-
  • Insulation Height:0.362" (9.20mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold-Palladium
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:Keying Slot
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:250VAC

Related Products


178326-2

CONN HEADER VERT 12POS 3.81MM

178326-2 Datasheet
  • 1: $4.74000
  • 10: $4.55630
  • 100: $3.79643

XG4C-6431

CONN HEADER VERT 64POS 2.54MM

XG4C-6431 Datasheet
  • 1: $4.79000
  • 30: $4.21079
  • 120: $3.82799

2-1761607-3

CONN HEADER R/A 10POS 2.54MM

2-1761607-3 Datasheet
  • 1: $4.75000
  • 26: $4.22368
  • 104: $3.87163

0428192212

CONN HEADER VERT 2POS 10MM

0428192212 Datasheet
  • 1: $4.76000
  • 52: $3.99414
  • 104: $3.80399

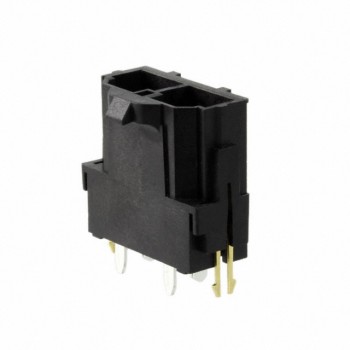

0428192213

CONN HEADER VERT 2POS 10MM

0428192213 Datasheet
  • 1: $4.76000
  • 10: $4.56784
  • 468: $3.33092

9-146281-0

CONN HEADER VERT 40POS 2.54MM

9-146281-0 Datasheet
  • 1: $4.77000
  • 10: $4.57789
  • 100: $3.81491

87227-5

CONN HEADER VERT 10POS 2.54MM

87227-5 Datasheet
  • 1: $4.78000
  • 10: $4.59126
  • 100: $3.82584

350732-4

CONN HEADER VERT 6POS 6.35MM

350732-4 Datasheet
  • 1: $4.80000
  • 10: $4.61538
  • 100: $3.90568

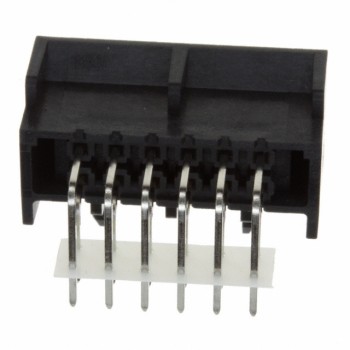

0444281202
