M80-6662042

Harwin
In Stock: 463

Can ship immediately

Pricing:
  • 1$8.14
  • 10$7.80084
  • 100$6.44416
  • 500$5.42666
  • 1,000$4.74834

Quote It

Technical Details

  • Series:Datamate L-Tek
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Lock
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.235" (5.97mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Features:Strain Relief Clips
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.2A
  • Voltage Rating:800V

Related Products


81026-660203-RB

CONN HEADER VERT 26POS 1.27MM

  • 1: $8.23000
  • 10: $7.88426
  • 100: $6.51273

G125-MS12005L0P

CONN HEADER SMD 20POS 1.25MM

G125-MS12005L0P Datasheet
  • 1: $8.20000
  • 10: $7.86223
  • 100: $6.49489

929648-01-36-I

CONN HEADER R/A 36POS 2.54MM

929648-01-36-I Datasheet
  • 1: $8.22000
  • 10: $7.87868
  • 25: $7.19321

09185646902

CONN HEADER VERT 64POS 2.54MM

09185646902 Datasheet
  • 1: $8.22000
  • 10: $7.87750
  • 25: $7.19272

963357-3

CONN HEADER VERT 14POS 5MM

963357-3 Datasheet
  • 1: $8.24000
  • 10: $7.89557
  • 100: $6.52261

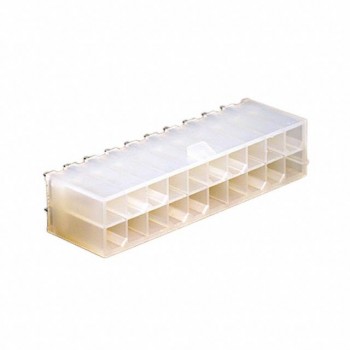

0039290203

CONN HEADER VERT 20POS 4.2MM

0039290203 Datasheet
  • 1: $8.24000
  • 10: $7.88253
  • 100: $6.62815

1-1761608-1

CONN HEADER VERT 34POS 2.54MM

1-1761608-1 Datasheet
  • 1: $8.26000
  • 10: $7.94709
  • 100: $6.67602

155220-2300-RB

CONN HEADER SMD 20POS 2MM

155220-2300-RB Datasheet
  • 1: $8.34000
  • 10: $7.97853
  • 100: $6.70956

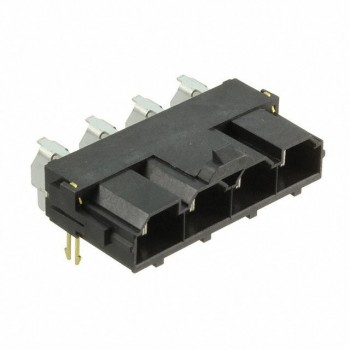

0428204214
