5-794619-2
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 22POS 3MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 5-794619-2 Datasheet
-
ECAD Model
- Share
In Stock: 1,248
Can ship immediately
Pricing:
- 1$3.94
- 91$3.35749
- 182$3.21151
- 546$2.7736
- 1,001$2.40864
- 5,005$2.18968
Quote It
Technical Details
- Series:Micro MATE-N-LOK
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.118" (3.00mm)
- Number of Positions:22
- Number of Rows:2
- Row Spacing - Mating:0.118" (3.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.290" (7.37mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Lock
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:250V
Related Products

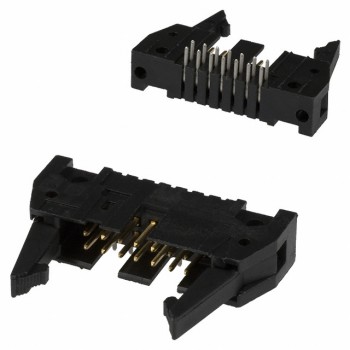

CONN HEADER R/A 14POS 2.54MM
