In Stock: 517

Can ship immediately

Pricing:
  • 1$4.21
  • 10$4.04333
  • 100$3.3693
  • 500$2.8639
  • 1,000$2.44274

Quote It

Technical Details

  • Series:Quickie™
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:64
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks, Short
  • Contact Length - Mating:0.228" (5.80mm)



  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:-
  • Insulation Height:0.339" (8.61mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:Keying Slot, Mounting Flange
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Gray
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


5104338-9

CONN HEADER VERT 50POS 2.54MM

5104338-9 Datasheet
  • 1: $4.21000
  • 35: $3.75754
  • 105: $3.45072

09185406324

CONN HEADER VERT 40POS 2.54MM

09185406324 Datasheet
  • 1: $4.27000
  • 10: $4.09275
  • 25: $3.75169

0740991012

CONN HEADER SMD 12POS 2.54MM

  • 1: $4.22000

0430451411

CONN HEADER SMD R/A 14POS 3MM

0430451411 Datasheet
  • 1: $6.04000
  • 200: $4.82800
  • 400: $4.22450

0460152006

CONN HEADER VERT 20POS 4.2MM

0460152006 Datasheet
  • 1: $4.27000
  • 10: $4.09839
  • 100: $3.41519

830-80-050-10-001101

CONN HEADER VERT 50POS 2MM

830-80-050-10-001101 Datasheet
  • 1: $4.23000
  • 10: $4.05646
  • 100: $3.38064

AWH 64G-0222-T

CONN HEADER VERT 64POS 2.54MM

AWH 64G-0222-T Datasheet
  • 1: $4.28000
  • 48: $3.76855
  • 144: $3.42605

3-644487-0

CONN HEADER VERT 10POS 2.54MM

3-644487-0 Datasheet
  • 1: $4.25000
  • 10: $4.09308
  • 100: $3.46299

0878334420

CONN HEADER R/A 44POS 2MM

0878334420 Datasheet
  • 1: $4.25000
  • 10: $4.07904
  • 100: $3.39920

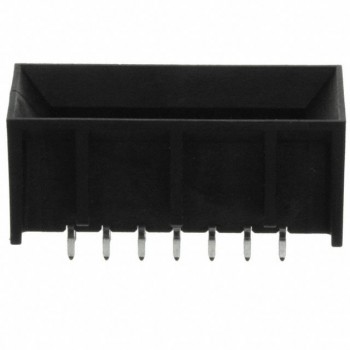

0444321401
