In Stock: 1,877

Can ship immediately

Pricing:
  • 1$1.44
  • 10$1.31177
  • 450$1.01692
  • 900$0.90989
  • 1,350$0.80284
  • 5,400$0.71186
  • 10,350$0.69579

Quote It

Technical Details

  • Series:Mini CT
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.059" (1.50mm)
  • Number of Positions:36
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.114" (2.90mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.291" (7.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:Board Guide
  • Operating Temperature:-30°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Gray
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:50VAC

Related Products


4282-1-0200-18-SP

CONN HEADER R/A 18POS DUAL 94V-0

  • 1: $1.44000

1-1734261-2

CONN HEADER SMD R/A 12POS 1.25MM

1-1734261-2 Datasheet
  • 1: $2.51000
  • 1000: $1.56419
  • 2000: $1.51818

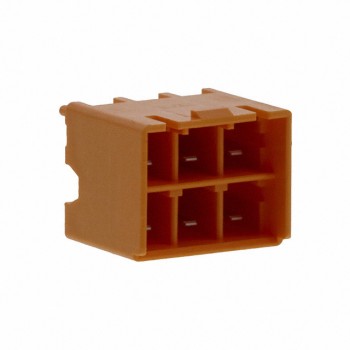

3-1376387-4

CONN HEADER VERT 6POS 5MM

3-1376387-4 Datasheet
  • 1: $1.43000
  • 10: $1.27615
  • 100: $1.11362

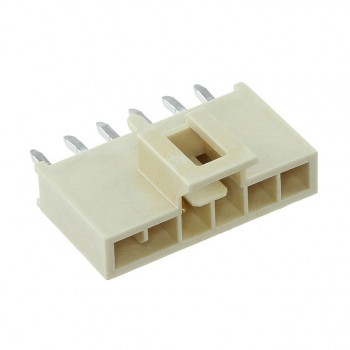

1053092106

CONN HEADER VERT 6POS 2.5MM

1053092106 Datasheet
  • 1: $1.44000
  • 10: $1.30607
  • 102: $1.11904

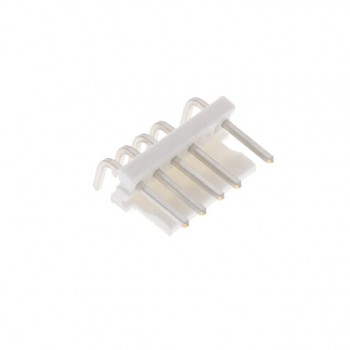

644408-1

CONN HEADER R/A 6POS 3.96MM

644408-1 Datasheet
  • 1: $1.43000
  • 10: $1.29326
  • 100: $1.10820

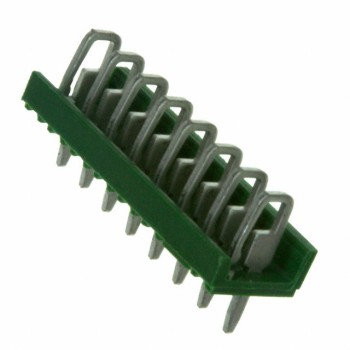

5164713-8

CONN HEADER VERT 8POS 2.5MM

5164713-8 Datasheet
  • 1: $1.43000
  • 10: $1.29529
  • 100: $1.11032

4282-1-0100-22-SP

CONN HEADER VERT 22POS DL 94V-0

  • 1: $1.45000

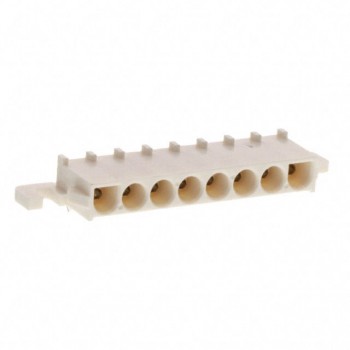

1969816-1

CONN HEADER R/A 8POS 6.35MM

  • 1: $1.43000
  • 10: $1.30100
  • 100: $1.11510

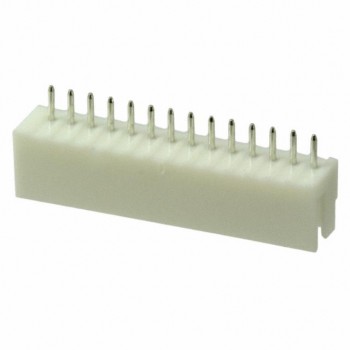

1-292133-4

CONN HEADER VERT 14POS 2MM

1-292133-4 Datasheet
  • 1: $1.44000
  • 10: $1.26492
  • 100: $1.09129

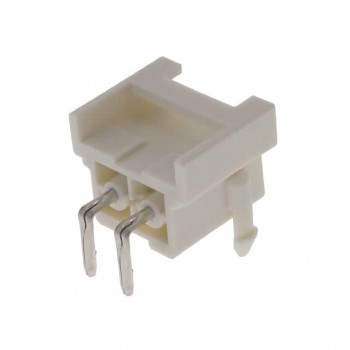

1969694-2
