0452800601

Woodhead - Molex
In Stock: 884

Can ship immediately

Quote It

Technical Details

  • Series:Micro-Fit 3.0 BMI CPI 45280
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:6
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.193" (4.90mm)
  • Overall Contact Length:-
  • Insulation Height:0.457" (11.60mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:200.0µin (5.08µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


Product

CONN HEADER VERT 18POS 2.54MM

280509-1 Datasheet
  • 1: $2.96000
  • 10: $2.83800
  • 100: $2.36470

Product

CONN HEADER SMD R/A 9POS 3MM

  • 1: $4.24000

Product

CONN HEADER VERT 16POS 4.2MM

0039306168 Datasheet
  • 1: $3.00000
  • 10: $2.87879
  • 100: $2.39879

Product

CONN HEADER R/A 11POS 3.96MM

644957-1 Datasheet
  • 1: $2.98000
  • 10: $2.86740
  • 100: $2.42661

Product

CONN HEADER SMD 12POS 2MM

0878321221 Datasheet
  • 1: $3.01000
  • 36: $2.64861
  • 108: $2.40778

Product

CONN HEADER VERT 20POS 2MM

0877582050 Datasheet
  • 1: $3.05000
  • 10: $2.92780
  • 100: $2.44020

Product

CONN HEADER VERT 16POS 2.54MM

N3408-6203RB Datasheet
  • 1: $3.03000
  • 10: $2.90922
  • 100: $2.42400

Product

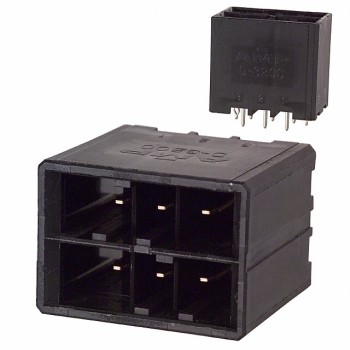

CONN HEADER VERT 6POS 5.08MM
