1722982116
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 16POS 3.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1722982116 Datasheet
-
ECAD Model
- Share
In Stock: 503
Can ship immediately
Pricing:
- 1$3.7
- 10$3.55003
- 100$2.95862
- 500$2.51484
- 1,000$2.145
- 5,000$1.9231
Quote It
Technical Details
- Series:Ultra-Fit 172298
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.138" (3.50mm)
- Number of Positions:16
- Number of Rows:2
- Row Spacing - Mating:0.181" (4.60mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Kinked Pin, Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:0.126" (3.20mm)
- Overall Contact Length:-
- Insulation Height:0.465" (11.80mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:60.0µin (1.52µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Board Guide
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):-
- Voltage Rating:400V
Related Products

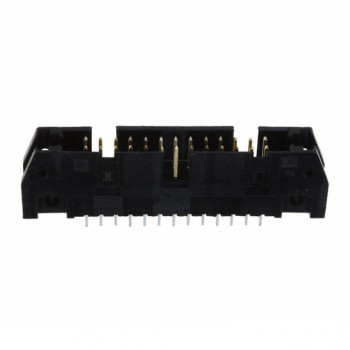

CONN HEADER VERT 34POS 2MM
