1714917

Phoenix Contact
In Stock: 1,264

Can ship immediately

Pricing:
  • 1$6.14
  • 560$5.13536
  • 1,120$4.49344
  • 1,680$4.39715

Quote It

Technical Details

  • Series:COMBICON FP
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:32
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.165" (4.20mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Guide, Solder Retention
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1.4A
  • Voltage Rating:500V

Related Products


1714940

CONN HEADER 1.27MM 32POS SMD

  • 1: $5.66000
  • 280: $5.45632
  • 560: $5.13536

0430452219

CONN HEADER SMD 22POS 3MM

0430452219 Datasheet
  • 1: $6.68000
  • 200: $5.28675
  • 400: $4.73025

0022121102

CONN HEADER R/A 10POS 2.5MM

0022121102 Datasheet
  • 1: $4.75000
  • 10: $4.55900
  • 100: $3.79920

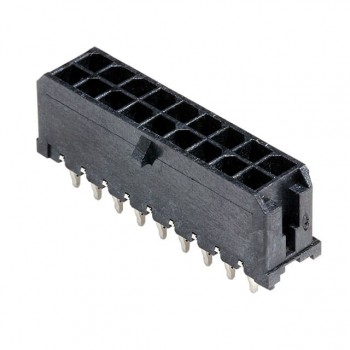

0449141801

CONN HEADER VERT 18POS 3MM

0449141801 Datasheet
  • 1: $4.80000
  • 10: $4.60800
  • 100: $3.84040

335-10-103-00-160000

CONN HEADER VERT 3POS 2.54MM

335-10-103-00-160000 Datasheet
  • 1: $4.75000
  • 10: $4.31965
  • 100: $3.67170

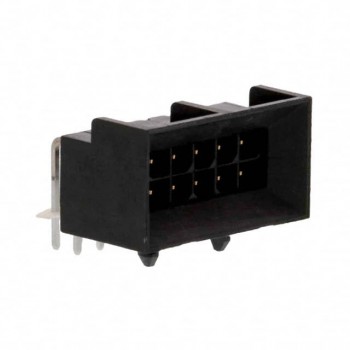

0444281003

CONN HEADER R/A 10POS 3MM

0444281003 Datasheet
  • 1: $4.82000
  • 10: $4.62801
  • 100: $3.85681

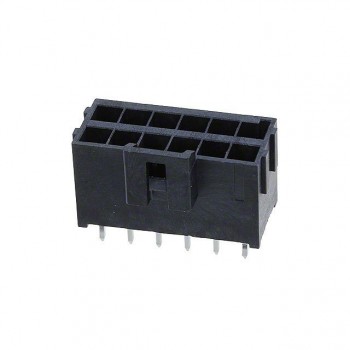

1722981312

CONN HEADER VERT 12POS 3.5MM

1722981312 Datasheet
  • 1: $4.77000
  • 10: $4.58100
  • 100: $3.81780

98464-G61-22LF

CONN HEADER R/A 22POS 2MM

98464-G61-22LF Datasheet
  • 1: $4.77000
  • 10: $4.57531
  • 100: $3.81297

435-10-204-00-160000

CONN HEADER VERT 4POS 2.54MM

435-10-204-00-160000 Datasheet
  • 1: $4.77000
  • 10: $4.33690
  • 100: $3.68636

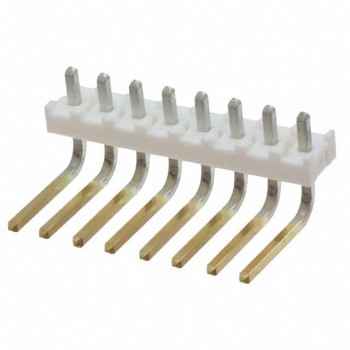

0026613080
