0440680092

Woodhead - Molex
In Stock: 408

Can ship immediately

Pricing:
  • 1$4.83
  • 10$4.63337
  • 400$3.37871
  • 800$2.99257
  • 1,200$2.7995

Quote It

Technical Details

  • Series:Mini-Fit BMI SMC 44068
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.193" (4.90mm)
  • Overall Contact Length:-
  • Insulation Height:0.587" (14.91mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA46), Nylon 4/6
  • Features:Board Lock
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


1-5103311-2

CONN HEADER R/A 60POS 2.54MM

1-5103311-2 Datasheet
  • 1: $4.81000
  • 30: $4.22838
  • 120: $3.84384

M50-4801545

CONN HEADER R/A 30POS 1.27MM

M50-4801545 Datasheet
  • 1: $4.82000
  • 54: $4.05117
  • 108: $3.85821

4-641119-1

CONN HEADER VERT 11POS 3.96MM

4-641119-1 Datasheet
  • 1: $4.83000
  • 10: $4.65021
  • 100: $3.93514

644958-1

CONN HEADER R/A 15POS 3.96MM

644958-1 Datasheet
  • 1: $4.84000
  • 10: $4.65954
  • 100: $3.94335

2-5499141-8

CONN HEADER R/A 34POS 2.54MM

2-5499141-8 Datasheet
  • 1: $4.85000
  • 10: $4.67188
  • 100: $3.95318

1714929

CONN HEADER 1.27MM 32POS SMD

  • 1: $5.83000
  • 280: $5.61814
  • 560: $5.28768

M50-4701545

CONN HEADER VERT 30POS 1.27MM

M50-4701545 Datasheet
  • 1: $4.87000
  • 27: $4.28560
  • 108: $3.89600

1-794072-0

CONN HEADER VERT 24POS 4.14MM

1-794072-0 Datasheet
  • 1: $4.87000
  • 10: $4.67058
  • 100: $3.89254

4-794629-6

CONN HEADER SMD R/A 16POS 3MM

4-794629-6 Datasheet
  • 1: $6.16000
  • 150: $5.32573
  • 300: $4.72060

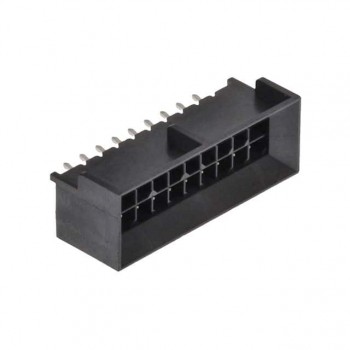

0444321801
