In Stock: 1,023

Can ship immediately

Pricing:
  • 1$5.24
  • 40$4.6554
  • 120$4.26743
  • 520$3.68552
  • 1,000$3.20058

Quote It

Technical Details

  • Series:AMP-Latch
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:44
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.639" (16.23mm)
  • Insulation Height:0.549" (13.94mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold-Palladium
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:-
  • Insulation Material:-
  • Features:Mounting Flange
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:-

Related Products


0444281601

CONN HEADER R/A 16POS 3MM

0444281601 Datasheet
  • 1: $5.32000
  • 10: $5.10963
  • 420: $3.72578

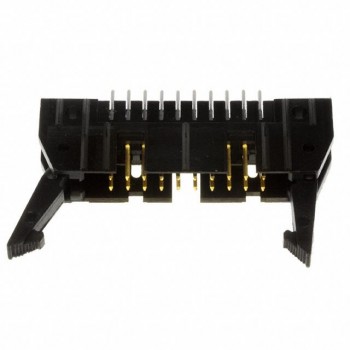

102321-4

CONN HEADER VERT 20POS 2.54MM

102321-4 Datasheet
  • 1: $5.33000
  • 42: $4.73736
  • 126: $4.34268

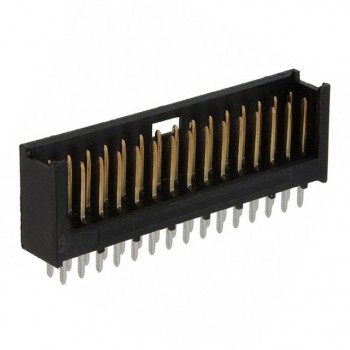

280387-2

CONN HEADER VERT 30POS 2.54MM

280387-2 Datasheet
  • 1: $5.29000
  • 10: $5.07928
  • 100: $4.23233

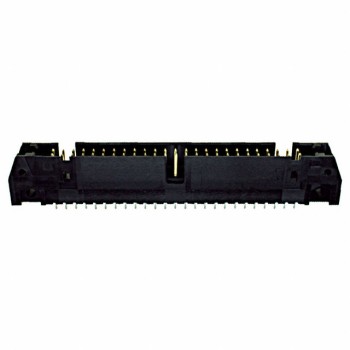

1-102153-0

CONN HEADER VERT 50POS 2.54MM

1-102153-0 Datasheet
  • 1: $5.34000
  • 30: $4.67096
  • 120: $4.22610

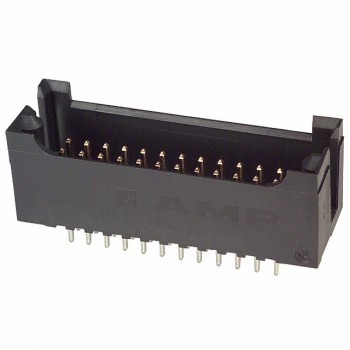

102567-2

CONN HEADER VERT 24POS 2.54MM

102567-2 Datasheet
  • 1: $5.30000
  • 48: $4.66404
  • 144: $4.24000

1714931

CONN HEADER 1.27MM 50POS SMD

  • 1: $6.36000
  • 280: $5.94661
  • 560: $5.58620

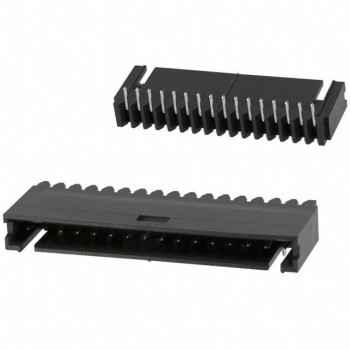

6-102523-4

CONN HEADER R/A 16POS 2.54MM

6-102523-4 Datasheet
  • 1: $5.34000
  • 12: $5.12344
  • 108: $4.26948

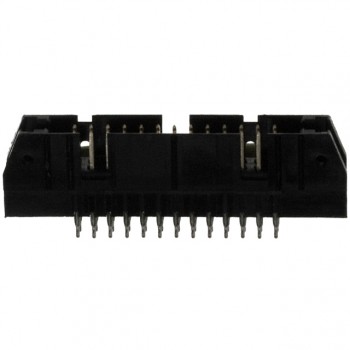

1658694-2
