AT15-12PC-BM16

Tuchel / Amphenol
In Stock: 145,207

Can ship immediately

Pricing:
  • 1$8.07
  • 10$7.38777
  • 30$7.21765
  • 60$6.70697
  • 120$6.36646
  • 270$5.85581
  • 510$5.51535
  • 1,020$5.1068

Quote It

Technical Details

  • Series:AT Series™
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:-
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.358" (9.10mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.122" (3.10mm)
  • Overall Contact Length:-
  • Insulation Height:1.378" (35.00mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Board Guide, Mating Flange, Mounting Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:IP67
  • Material Flammability Rating:-
  • Insulation Color:Green
  • Current Rating (Amps):13A
  • Voltage Rating:250V

Related Products


AT15-12PA-BM03

CONN HEADER VERT 12POS

  • 1: $8.07000
  • 10: $7.38777
  • 30: $7.21765

830-10-008-40-028000

CONN HEADER SMD R/A 8POS 2.54MM

830-10-008-40-028000 Datasheet
  • 1: $8.09000
  • 10: $7.75870
  • 100: $6.40946

5-102567-6

CONN HEADER VERT 50POS 2.54MM

5-102567-6 Datasheet
  • 1: $8.09000
  • 28: $7.07492
  • 112: $6.40116

0015286182

CONN HEADER VERT 18POS 4.2MM

0015286182 Datasheet
  • 1: $8.10000
  • 10: $7.76600
  • 25: $7.09040

929705-01-36-I

CONN HEADER VERT 36POS 2.54MM

929705-01-36-I Datasheet
  • 1: $8.11000
  • 10: $7.76762
  • 100: $6.41690

929705-11-36-I

CONN HEADER VERT 36POS 2.54MM

929705-11-36-I Datasheet
  • 1: $8.11000
  • 10: $7.76762
  • 100: $6.41690

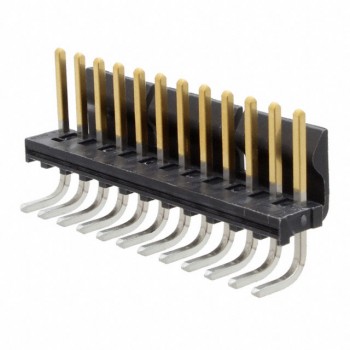

1718141012

CONN HEADER R/A 12POS 3.96MM

1718141012 Datasheet
  • 1: $8.13000
  • 10: $7.79077
  • 100: $6.43558

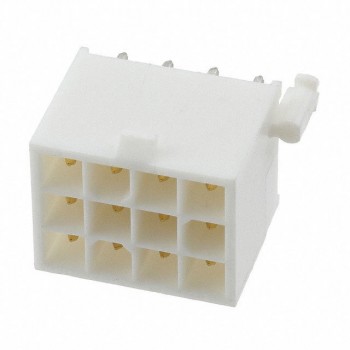

794040-2

CONN HEADER VERT 12POS 4.14MM

794040-2 Datasheet
  • 1: $8.13000
  • 10: $7.77200
  • 100: $6.53550

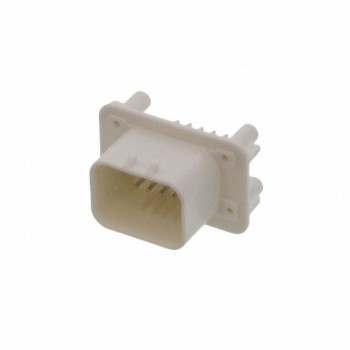

776261-2

CONN HEADER VERT 14POS 4MM

776261-2 Datasheet
  • 1: $8.14000
  • 10: $7.80671
  • 100: $6.50559

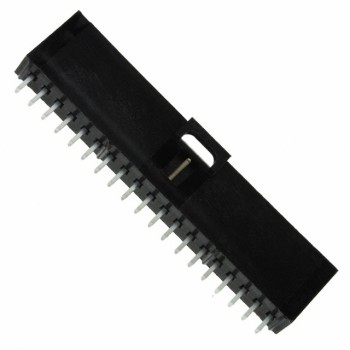

0705430018
