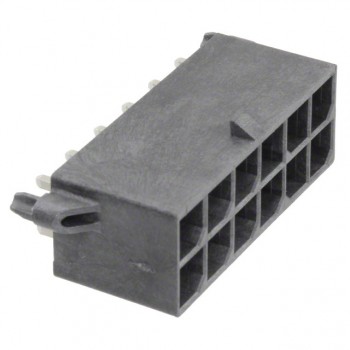

AT15-12PA-BM04
Tuchel / Amphenol
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 12POS
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 274
Can ship immediately
Pricing:
- 1$11.86
- 10$10.80715
- 30$10.39571
- 60$9.80838
- 120$9.51471
- 270$9.04487
- 510$8.80993
Quote It
Technical Details
- Series:BoardLock™ AT
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Male Pin
- Pitch - Mating:-
- Number of Positions:12
- Number of Rows:2
- Row Spacing - Mating:0.358" (9.10mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:0.122" (3.10mm)
- Overall Contact Length:-
- Insulation Height:1.185" (30.10mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic
- Features:Board Guide, Mating Flange, Mounting Flange, Potting Wall
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:IP67
- Material Flammability Rating:-
- Insulation Color:Gray
- Current Rating (Amps):13A
- Voltage Rating:250V
