AT15-12PB-BM01

Tuchel / Amphenol
In Stock: 310

Can ship immediately

Pricing:
  • 1$14.81
  • 10$13.48979
  • 30$12.97663
  • 60$12.24354
  • 120$11.87694
  • 270$11.29043

Quote It

Technical Details

  • Series:BoardLock™ AT
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:-
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.358" (9.10mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.122" (3.10mm)
  • Overall Contact Length:-
  • Insulation Height:1.185" (30.10mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Board Guide, Mating Flange, Mounting Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:IP67
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):13A
  • Voltage Rating:250V

Related Products


AT15-12PC-BM01

CONN HEADER VERT 12POS

  • 1: $14.81000
  • 10: $13.48979
  • 30: $12.97663

AT15-12PD-BM01

CONN HEADER VERT 12POS

  • 1: $14.81000
  • 10: $13.48979
  • 30: $12.97663

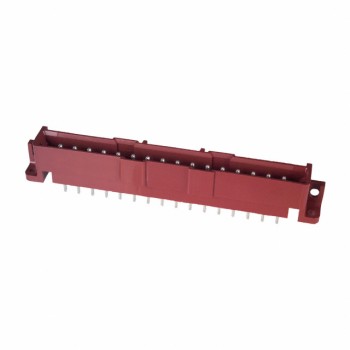

207599-6

CONN HEADER VERT 16POS 5MM

207599-6 Datasheet
  • 1: $14.91000
  • 10: $13.55354
  • 100: $11.52062

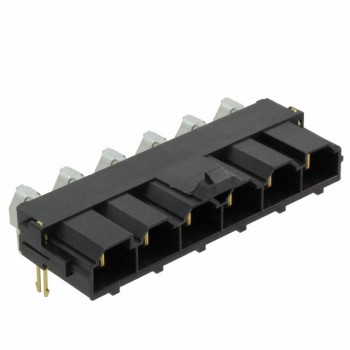

0428206223

CONN HEADER R/A 6POS 10MM

0428206223 Datasheet
  • 1: $15.18000
  • 10: $13.79800
  • 160: $11.72813

M80-5S21222MR

CONN HDR 2MM 12POS GOLD SMD

  • 1: $15.40000
  • 12: $14.00000
  • 108: $11.90000

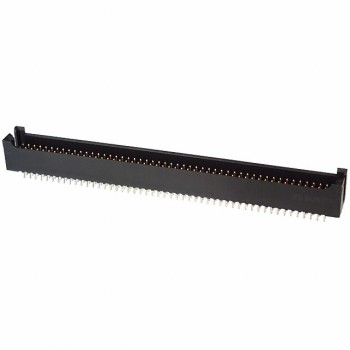

5-102692-8

CONN HEADER VERT 100POS 2.54MM

5-102692-8 Datasheet
  • 1: $15.80000
  • 12: $14.36168
  • 108: $12.20739

M80-5120842

CONN HEADER SMD 8POS 2MM

M80-5120842 Datasheet
  • 1: $15.85000
  • 14: $14.41325
  • 112: $12.25109

MX23A36NF1

CONN HEADER R/A 36POS 2.5MM

MX23A36NF1 Datasheet
  • 1: $16.25000
  • 10: $15.08553
  • 360: $10.83064

87402-130LF

CONN HEADER R/A 60POS 1.27MM

87402-130LF Datasheet
  • 1: $16.12000
  • 12: $14.64963
  • 108: $12.45259

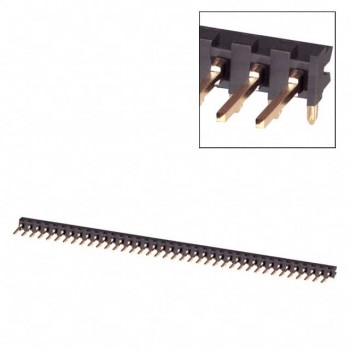

4-87232-0
