690357282676
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionWR-MM MALE SMT CONNECTOR
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 2,187
Can ship immediately
Pricing:
- 1$2.43
Quote It
Technical Details
- Series:WR-MM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:26
- Number of Rows:2
- Row Spacing - Mating:0.059" (1.50mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.142" (3.60mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA6T), Nylon 6T
- Features:Pick and Place
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Red
- Current Rating (Amps):1.5A per Contact
- Voltage Rating:100VAC
Related Products
CONN HEADER VERT 12POS 3MM
- 1: $2.41000

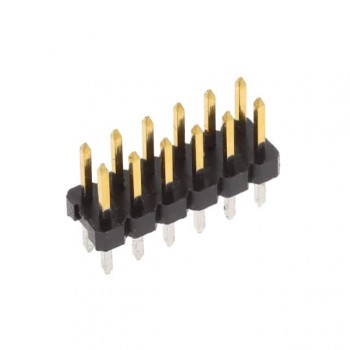

20P,2MM,BRK HDR,DRVT,SMD,0.76AU,
- 1: $3.10000
10P,2MM,BRK HDR,SRRT,2.8,0.76AU,
- 1: $2.41000
10P,2MM,BRK HDR,DRRT,2.8,0.76AU,
- 1: $2.41000
12P,2MM,BRK HDR,DRVT,2.8,0.76AU,
- 1: $2.41000

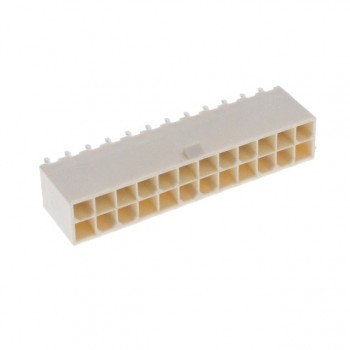

24P VRT HDR VAL-U-LOK HCS V0
