ATF13-12PD-BM13

Tuchel / Amphenol
In Stock: 238

Can ship immediately

Pricing:
  • 1$10.07

Quote It

Technical Details

  • Series:BoardLock™ AT
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:0.174" (4.42mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:0.874" (22.20mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Mounting Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Material Flammability Rating:-
  • Insulation Color:Brown
  • Current Rating (Amps):13A
  • Voltage Rating:250VDC

Related Products


MX84B032NF1

CONN PIN HEADER 32 POS R/A

  • 1: $10.45000

0428205214

CONN HEADER R/A 5POS 10MM

0428205214 Datasheet
  • 1: $10.52000
  • 200: $8.45970

MX84B032NF2

CONN PIN HEADER 32 POS R/A

  • 1: $10.67000

0366380002

CONN HEADER BRD EDGE 48POS

0366380002 Datasheet
  • 1: $10.70000
  • 25: $9.30760
  • 100: $8.60951

ATF13-3P-BM01

BOARD MOUNT HEADER, RIGHT ANGLE,

  • 1: $10.75000

68293-009LF

CONN HEADER R/A 8POS 2.54MM

68293-009LF Datasheet
  • 1: $10.95000
  • 432: $8.54944

2125282401

R/A HDR 15 GOLD 2X12CKT

  • 1: $11.11000

155240-6302-RB

CONN HEADER VERT 40POS 2MM

155240-6302-RB Datasheet
  • 1: $11.11000
  • 10: $10.10000
  • 100: $8.58500

PM208MBALST

POWERMOD 2X8 PIN STRAIGHT PCB 7M

  • 1: $11.07000

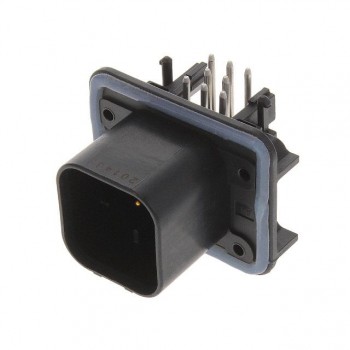

1-776280-1
