In Stock: 183

Can ship immediately

Pricing:
  • 1$0.51
  • 10$0.47919
  • 100$0.36731
  • 500$0.31943
  • 1,000$0.26353
  • 5,000$0.23158
  • 10,000$0.21561

Quote It

Technical Details

  • Series:Economy Power
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.303" (7.70mm)



  • Contact Length - Post:0.146" (3.70mm)
  • Overall Contact Length:0.567" (14.40mm)
  • Insulation Height:0.118" (3.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:-
  • Operating Temperature:-25°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Red
  • Current Rating (Amps):7.5A
  • Voltage Rating:250VAC

Related Products


2132230-8

CONN HEADER VERT 8POS 2.5MM

2132230-8 Datasheet
  • 1: $0.51000
  • 10: $0.48352
  • 100: $0.37779

0353630450

CONN HEADER R/A 4POS 2MM

0353630450 Datasheet
  • 1: $0.51000
  • 10: $0.47400
  • 100: $0.36340

1971032-5

CONN HEADER VERT 5POS 2MM

1971032-5 Datasheet
  • 1: $0.51000
  • 10: $0.47862
  • 100: $0.37371

DF33-4DP-3.3DSA(24)

CONN HEADER VERT 4POS 3.3MM

DF33-4DP-3.3DSA(24) Datasheet
  • 1: $0.51000
  • 10: $0.47600
  • 135: $0.36493

1744427-4

CONN HEADER VERT 4POS 3.96MM

1744427-4 Datasheet
  • 1: $0.52000
  • 10: $0.48958
  • 25: $0.44386

1744446-5

CONN HEADER R/A 5POS 2.5MM

1744446-5 Datasheet
  • 1: $0.52000
  • 10: $0.49155
  • 100: $0.38421

0022235084

CONN HEADER VERT 8POS 2.54MM

0022235084 Datasheet
  • 1: $0.52000
  • 10: $0.48800
  • 100: $0.37380

643431-1

CONN HEADER VERT 4POS 2.54MM

643431-1 Datasheet
  • 1: $0.52000
  • 10: $0.49258
  • 100: $0.38489

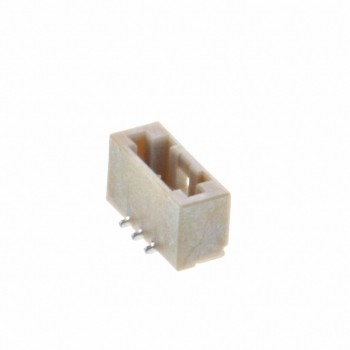

1041300310

CONN HEADER SMD 3POS 1.25MM

1041300310 Datasheet
  • 1: $1.01000
  • 1500: $0.52440
  • 3000: $0.50692

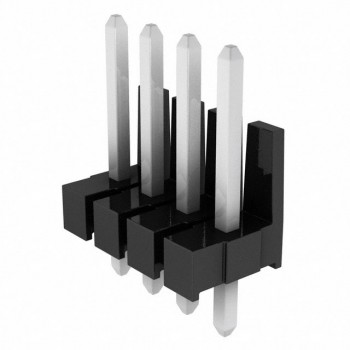

0026481043
