In Stock: 12,448

Can ship immediately

Pricing:
  • 1$0.78
  • 10$0.68948
  • 100$0.60176
  • 500$0.50143
  • 1,000$0.45127
  • 5,000$0.40113
  • 10,000$0.38359

Quote It

Technical Details

  • Series:High Performance Interconnect (HPI)
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 3 Wall
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.136" (3.45mm)



  • Contact Length - Post:0.134" (3.40mm)
  • Overall Contact Length:0.335" (8.51mm)
  • Insulation Height:0.236" (6.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:80.0µin (2.03µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):3A
  • Voltage Rating:250V

Related Products


1971032-8

CONN HEADER VERT 8POS 2MM

1971032-8 Datasheet
  • 1: $0.78000
  • 10: $0.69021
  • 25: $0.65339

SM04B-SURS-TF(LF)(SN)

CONN HEADER SMD R/A 4POS 0.8MM

SM04B-SURS-TF(LF)(SN) Datasheet
  • 1: $0.78000
  • 3500: $0.36499
  • 7000: $0.35282

1-1744429-0

CONN HEADER VERT 10POS 3.96MM

1-1744429-0 Datasheet
  • 1: $0.79000
  • 10: $0.74457
  • 100: $0.58154

1-1744418-0

CONN HEADER VERT 10POS 2.5MM

1-1744418-0 Datasheet
  • 1: $0.79000
  • 10: $0.70027
  • 25: $0.66204

1586044-2

CONN HEADER R/A 2POS

1586044-2 Datasheet
  • 1: $0.79000
  • 10: $0.70100
  • 260: $0.56096

171826-8

CONN HEADER R/A 8POS 2.5MM

171826-8 Datasheet
  • 1: $0.79000
  • 10: $0.73903
  • 100: $0.57594

5-1775444-7

CONN HEADER SMD R/A 7POS 1.5MM

5-1775444-7 Datasheet
  • 1: $0.79000
  • 1000: $0.45349
  • 2000: $0.44124

917781-1

CONN HEADER VERT 3POS 2.5MM

917781-1 Datasheet
  • 1: $0.79000
  • 10: $0.70594
  • 100: $0.61579

1-292228-2

CONN HEADER SMD R/A 12POS 1.5MM

1-292228-2 Datasheet
  • 1: $0.80000
  • 40600: $0.41152

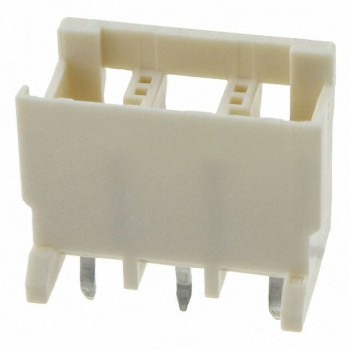

1747049-1
