In Stock: 188

Can ship immediately

Pricing:
  • 1$0.93
  • 2,000$0.53851
  • 4,000$0.52267
  • 6,000$0.50683
  • 10,000$0.48466
  • 14,000$0.47516

Quote It

Technical Details

  • Series:CT
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.165" (4.20mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.228" (5.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA6T), Nylon 6T, Glass Filled
  • Features:Solder Retention
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:125VAC

Related Products


1-1969582-2

CONN HEADER VERT 12POS 2.5MM

1-1969582-2 Datasheet
  • 1: $0.93000
  • 10: $0.82537
  • 100: $0.72007

292232-4

CONN HEADER SMD 4POS 1.5MM

292232-4 Datasheet
  • 1: $0.93000
  • 25000: $0.47757

1909782-3

CONN HEADER SMD R/A 4POS 1.2MM

1909782-3 Datasheet
  • 1: $0.94000
  • 28000: $0.48063

2-1470109-2

CONN HEADER VERT 22POS 2MM

2-1470109-2 Datasheet
  • 1: $0.94000
  • 10: $0.83631
  • 100: $0.72932

1971032-1

CONN HEADER VERT 10POS 2MM

1971032-1 Datasheet
  • 1: $0.94000
  • 10: $0.83335
  • 100: $0.72714

5-104361-3

CONN HEADER R/A 4POS 2.54MM

5-104361-3 Datasheet
  • 1: $0.94000
  • 42: $0.78206
  • 126: $0.71678

5-1376492-3

CONN HEADER VERT 3POS 2.5MM

5-1376492-3 Datasheet
  • 1: $0.95000
  • 18000: $0.53790

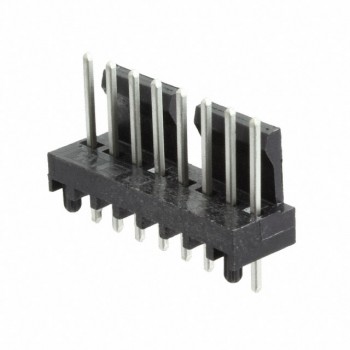

3-647609-8

CONN HEADER VERT 8POS 2.54MM

3-647609-8 Datasheet
  • 1: $0.95000
  • 10: $0.84205
  • 100: $0.73495

665105131822

CONN HEADER SMD R/A 5POS 1MM

  • 1: $0.95000
  • 1500: $0.69323

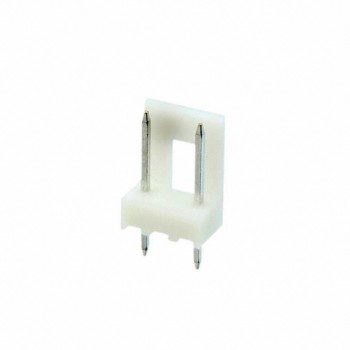

172106-2
