In Stock: 174

Can ship immediately

Pricing:
  • 1$1
  • 10$0.89
  • 270$0.71178
  • 540$0.64706
  • 1,080$0.58235
  • 5,130$0.51765
  • 10,260$0.495

Quote It

Technical Details

  • Series:VAL-U-LOK
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.504" (12.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:Board Lock, Glow Wire Compliant
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:White
  • Current Rating (Amps):9A
  • Voltage Rating:600VAC

Related Products


292206-9

CONN HEADER R/A 9POS 1.5MM

292206-9 Datasheet
  • 1: $1.01000
  • 10: $0.89072
  • 100: $0.77732

1969352-2

CONN HEADER R/A 2POS 5MM

1969352-2 Datasheet
  • 1: $1.01000
  • 10: $0.89497
  • 208: $0.78083

S9B-PH-SM4-TB(LF)(SN)

CONN HEADER SMD R/A 9POS 2MM

S9B-PH-SM4-TB(LF)(SN) Datasheet
  • 1: $1.01000
  • 1000: $0.55890
  • 2000: $0.52397

5-1969352-2

CONN HEADER R/A 2POS 5MM

5-1969352-2 Datasheet
  • 1: $1.01000
  • 10: $0.89497
  • 208: $0.78083

1-1747052-2

CONN HEADER VERT 2POS 7.92MM

1-1747052-2 Datasheet
  • 1: $1.01000
  • 10: $0.89123
  • 100: $0.77798

2232532-4

CONN HEADER VERT 4POS 5MM

2232532-4 Datasheet
  • 1: $1.01000
  • 10: $0.89735
  • 100: $0.78353

0533250260

CONN HEADER R/A 2POS 2MM

0533250260 Datasheet
  • 1: $1.02000
  • 10: $0.89700
  • 100: $0.77370

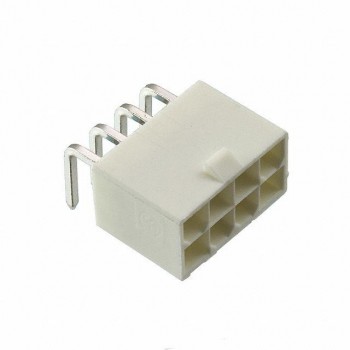

1586863-8
