In Stock: 116

Can ship immediately

Pricing:
  • 1$1.18
  • 10$1.04332
  • 100$0.91096
  • 500$0.75915
  • 1,000$0.68324
  • 5,000$0.60733
  • 10,000$0.58076

Quote It

Technical Details

  • Series:Economy Power
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.200" (5.08mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.338" (8.59mm)



  • Contact Length - Post:0.142" (3.60mm)
  • Overall Contact Length:-
  • Insulation Height:0.335" (8.51mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:80.0µin (2.03µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:-
  • Operating Temperature:-25°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):7.5A
  • Voltage Rating:250VAC

Related Products


SM13B-ZESS-TB(LF)(SN)

CONN HEADER SMD R/A 13POS 1.5MM

SM13B-ZESS-TB(LF)(SN) Datasheet
  • 1: $1.18000
  • 1000: $0.65191
  • 2000: $0.61117

8MM-11-0002-02-279191

CONN HEADER SMD R/A 2POS 2.54MM

8MM-11-0002-02-279191 Datasheet
  • 1: $1.18000
  • 2300: $0.60039
  • 4600: $0.58038

1909782-5

CONN HEADER SMD R/A 6POS 1.2MM

1909782-5 Datasheet
  • 1: $1.19000
  • 28000: $0.60717

SM10B-SURS-TF(LF)(SN)

CONN HEADER SMD R/A 10POS 0.8MM

SM10B-SURS-TF(LF)(SN) Datasheet
  • 1: $1.19000
  • 3500: $0.59271
  • 7000: $0.57227

1747996-4

CONN HEADER VERT 2POS

1747996-4 Datasheet
  • 1: $1.19000
  • 10: $1.05882
  • 25: $1.00072

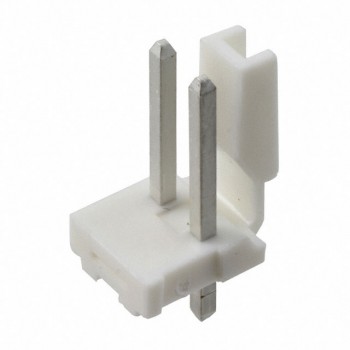

3-644611-2

CONN HEADER VERT 2POS 3.96MM

3-644611-2 Datasheet
  • 1: $1.20000
  • 10: $1.05368
  • 100: $0.90905

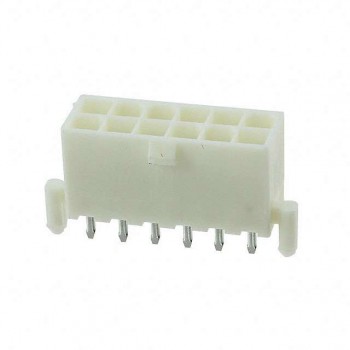

1-1586040-2

CONN HEADER VERT 12POS 4.2MM

1-1586040-2 Datasheet
  • 1: $1.20000
  • 10: $1.06116
  • 180: $0.92622

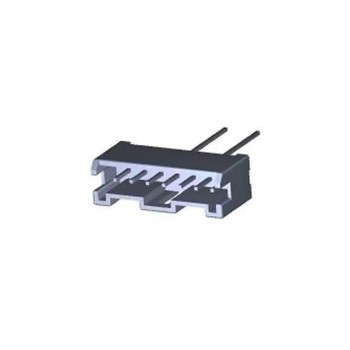

5-1376492-7

CONN HEADER VERT 7POS 2.5MM

5-1376492-7 Datasheet
  • 1: $1.22000
  • 18000: $0.69441

DF50A-10P-1H(51)

CONN HEADER SMD R/A 10POS 1MM

DF50A-10P-1H(51) Datasheet
  • 1: $1.22000
  • 1000: $0.65600

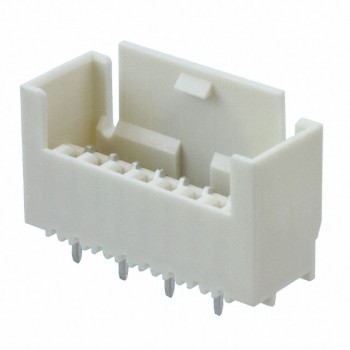

1-1971817-8
