B22B-PHDSS(LF)(SN)
JST
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 22POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet B22B-PHDSS(LF)(SN) Datasheet
-
ECAD Model
- Share
In Stock: 537
Can ship immediately
Pricing:
- 1$0.85
- 10$0.749
- 100$0.6462
- 500$0.52868
- 1,000$0.46993
- 5,000$0.41119
- 10,000$0.39063
Quote It
Technical Details
- Series:PHD
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:22
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.114" (2.90mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:0.291" (7.40mm)
- Insulation Height:0.256" (6.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polyamide (PA), Nylon, Glass Filled
- Features:-
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):3A
- Voltage Rating:250V
Related Products
CONN HEADER VERT 16POS 1.27MM
- 1: $0.87000
- 10: $0.76580
- 100: $0.66059

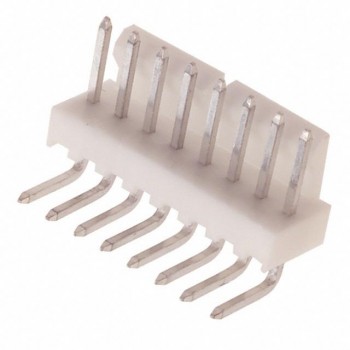

CONN HEADER R/A 8POS 3MM
