In Stock: 708

Can ship immediately

Pricing:
  • 1$2.63
  • 10$2.40573
  • 100$2.0879
  • 500$1.77013
  • 1,000$1.54319
  • 5,000$1.38887

Quote It

Technical Details

  • Series:Mini-PV™, Basics+
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:1.000" (25.40mm)
  • Insulation Height:0.386" (9.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:-
  • Contact Material:Phosphor Bronze
  • Insulation Material:-
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


M80-8541042

CONN HEADER VERT 10POS 2MM

M80-8541042 Datasheet
  • 1: $2.63000
  • 18: $2.38922
  • 108: $2.04783

0901200775

CONN HEADER VERT 15POS 2.54MM

0901200775 Datasheet
  • 1: $2.64000
  • 10: $2.39825
  • 100: $2.05536

M50-3551042

CONN HEADER VERT 20POS 1.27MM

M50-3551042 Datasheet
  • 1: $2.64000
  • 21: $2.39889
  • 105: $2.05628

0877583016

CONN HEADER VERT 30POS 2MM

  • 1: $2.65000

HIF3FC-20PA-2.54DSA(71)

CONN HEADER VERT 20POS 2.54MM

HIF3FC-20PA-2.54DSA(71) Datasheet
  • 1: $2.65000
  • 10: $2.40851
  • 100: $2.06443

67997-272HLF

CONN HEADER VERT 72POS 2.54MM

67997-272HLF Datasheet
  • 1: $2.66000
  • 10: $2.41144
  • 100: $2.06727

5-102202-5

CONN HEADER VERT 8POS 2.54MM

5-102202-5 Datasheet
  • 1: $2.66000
  • 23: $2.54960
  • 115: $2.12458

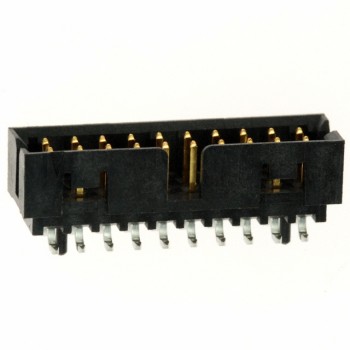

0878322020

CONN HEADER SMD 20POS 2MM

0878322020 Datasheet
  • 1: $2.67000
  • 10: $2.42727
  • 100: $2.08007

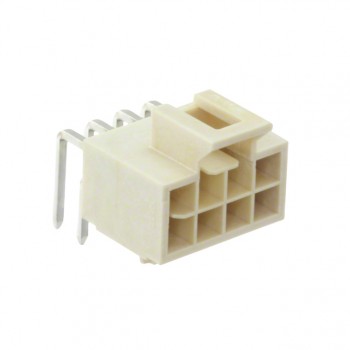

1053142208
