FI-S5P-HFE

JAE Electronics
In Stock: 597

Can ship immediately

Pricing:
  • 1$2.21
  • 10$2.009
  • 100$1.722
  • 500$1.435
  • 1,000$1.23
  • 5,000$1.0906

Quote It

Technical Details

  • Series:FI
  • Package:Strip
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:0.049" (1.25mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.071" (1.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin or Tin-Alloy
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Solder Retention
  • Operating Temperature:-40°C ~ 80°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Beige
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:200V

Related Products

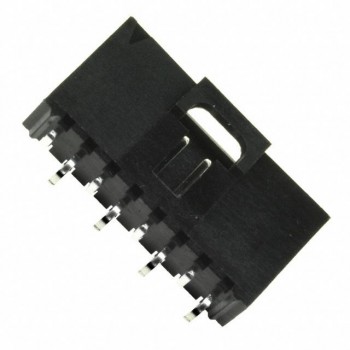

0740990008

CONN HEADER SMD 8POS 2.54MM

  • 1: $2.21000

FI-S4P-HFE

CONN HEADER SMD R/A 4POS 1.25MM

FI-S4P-HFE Datasheet
  • 1: $2.21000
  • 10: $2.00900
  • 100: $1.72200

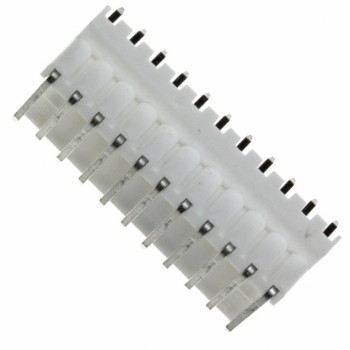

0022051112

CONN HEADER R/A 11POS 2.5MM

  • 1: $2.22000

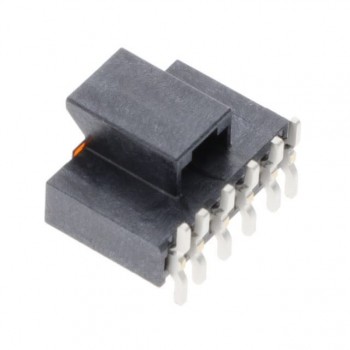

1054311204

CONN HEADER SMD 4POS 2.5MM

  • 1: $3.19000

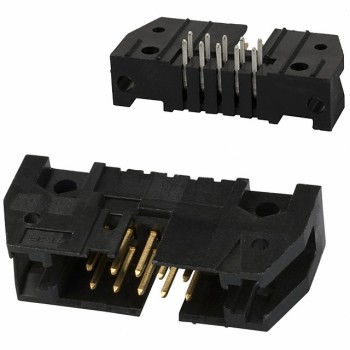

5102160-1

CONN HEADER R/A 10POS 2.54MM

5102160-1 Datasheet
  • 1: $2.24000
  • 10: $2.04738
  • 100: $1.77631

M80-8540642

CONN HEADER VERT 6POS 2MM

M80-8540642 Datasheet
  • 1: $2.24000
  • 26: $1.91075
  • 104: $1.74472

67997-134HLF

CONN HEADER VERT 34POS 2.54MM

67997-134HLF Datasheet
  • 1: $2.24000
  • 10: $2.03331
  • 100: $1.74255

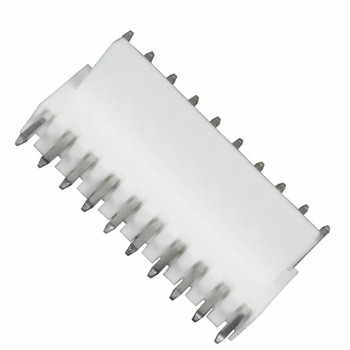

0022051102
